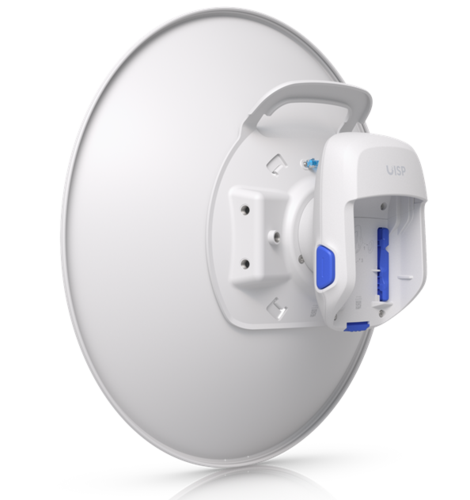

Ubiquiti UISP-DISH-MINI UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect

UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Point-to-point (PtP) dish antenna that covers a wide operating frequency range.

  • Compatible with Wave-MLO5, AF-5XHD, or RP-5AC-Gen2
  • 5.15 - 6.875 GHz operating frequency range
  • PtP Dish Antenna
  • WaveGuide radio adapter
  • Precision mounting bracket
  • Weatherproof IPX6 rate
Dimensions Antenna dish: Ø420 x 140 mm, Antenna dish with Waveguide: Ø420 x 211.3 mm
Weight Antenna dish: 1.95 kg, Mount: 1 kg , Waveguide: 0.45 kg
Enclosure Material Antenna dish: Powder-coated galvanized steel, UV-stabilized polycarbonate, Waveguide: Aluminum alloy, UV-stabilized polycarbonate
Mount Material Powder-coated galvanized steel, aluminum alloy
Wind Survivability Up to 200 km/h
Wind Loading 348 N at 200 km/h
Mounting Pole mount, Alignment mounting kit (Included), Mechanical adjustment: ±20° elevation
Pole Mount Diameter Ø32–76 mm
Weatherproofing IPX6
Frequency Range 5.15 to 6.875 GHz
Antenna Gain 26 dBi
Beamwidth Azimuth: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB), Elevation: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB)
Electrical Downtilt 0°
Max. VSWR 2:1
Polarization Dual-Linear
Compatibility Wave-MLO5, AF-5XHD, or RP-5AC-Gen2
Cross-Pol Isolation 15 dB
NDAA Compliant Yes
