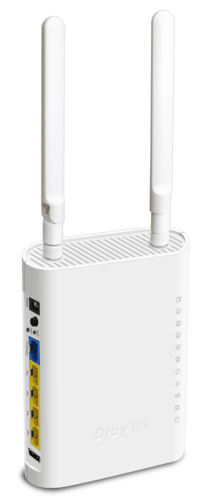

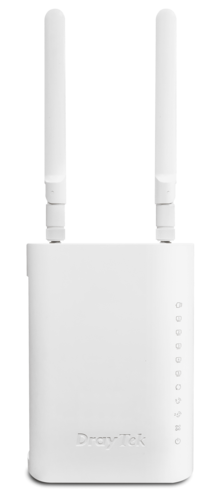

DrayTek DAP905 Dual Band 802.11ax (AX3000) Access Point with Mesh Wi-Fi, 1 × 2.5GbE PoE-PD LAN port and 4 × 1GbE LAN ports

• Concurrent Dual-band 802.11ax with 2×3 MU-MIMO
• 1x Internal 5GHz Antennas(iPA), 2x dual band external antennas
• Wi-Fi link speeds up to 2400 Mbps for 5GHz band and 600 Mbps for 2.4GHz band

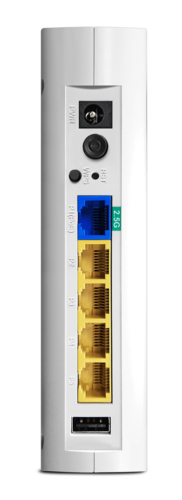

• 1 x 2.5GbE LAN port (PoE-in)
• 4 x GbE LAN ports + 1 x USB 2.0 Port
• Features AirTime Fairness and Band Steering for a better Wi-Fi user experience
• 8 SSIDs for each Wi-Fi band with unique VLAN settings
• Improve roaming experience by Fast Roaming & AP-assisted Roaming
• Multiple operating modes – AP, Mesh (Mesh Root or Mesh Node) and Range Extender
• Plug-n-Play Meshing *
• Built-in Diagnostic Tool (AP Discovery, Ping, Traceroute, Internet Detection, Client List)
• Supports VigorACS 3 Central Management Software for remote management
• Supports VigorConnect free software for local network management
• Virtual AP Controller for the deployment of up to 20 wireless VigorAPs
• Manageable from a Smartphone or Tablet using the DrayTek Wireless App.

* The VigorAP 905 Wi-Fi Mesh can  be set up with another VigorAP 905, VigorAP 805, VigorAP 1062C, VigorAP 960C or ax Wi-Fi routers such as Vigor2135ax, Vigor2136ax, 2765ax, 2766ax, 2865ax, 2866ax, 2927ax and Vigor C510ax

High-Performance DrayOS 5 WiFi 6 Access Points for Enhanced Network Efficiency
The DrayTek VigorAP 905 is a high-performance, dual-band 802.11ax (WiFi 6) wireless access point, designed for high-density environments such as classrooms, conference halls, and other locations with many simultaneous users. It supports up to 256 concurrent clients, delivering fast and reliable connectivity even under heavy usage.

Equipped with 2×3 MU-MIMO and Beamforming technology, the VigorAP 905 offers excellent wireless performance, with a combined throughput of up to 3 Gbps (2400 Mbps on 5 GHz and 600 Mbps on 2.4 GHz).

The built-in Plug-and-Play Mesh technology allows up to eight access points to be wirelessly linked into a Mesh group, extending wireless coverage without complex configuration. Setup is quick and easy using the built-in Quick Start Wizard or the free DrayTek Wireless App.

The Wi-Fi Mesh system also enhances network reliability. Redundancy features ensure that if one AP’s uplink fails, traffic is automatically rerouted through another AP, maintaining continuous service.

The VigorAP 905 is built with a Virtual AP Controller, which intelligently detects whether each AP is connected via wired or wireless uplink and automatically chooses the optimal topology:

For smaller deployments (fewer than 8 APs), it enables Mesh mode with 1 root AP and up to 7 nodes.
For larger deployments (up to 20 APs including the root), it switches to AP Management mode, offering greater control, scalability, and centralized management.

Key Features

WiFi 6
Feature OFDMA and MU-MIMO technology to improve WiFi efficiency and deliver higher wireless speed.

Band Steering
Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed. Learn more

Mesh
Easily link to other VigorAP to expand the wireless network. Learn more

Assisted Wi-Fi Roaming
Solve the sticky client problem and improve Wi-Fi roaming experience. Learn more

Multiple SSID
Mapping Wi-Fi clients to different VLANs and have a different set of security standards Learn how

Wi-Fi Scheduling
Schedule Wi-Fi On and Off to control wireless access and save energy.

Airtime Fairness
Equalize the transmission time of each client so the legacy devices won’t slow everyone down. Learn more

Virtual AP Controller
All-in-one management platform for VigorAP 905 to maintain and monitor the VigorAPs.
