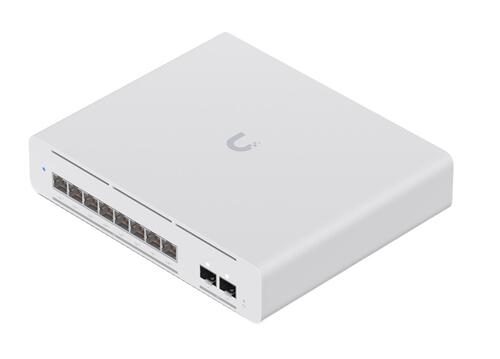

Ubiquiti USW-PRO-XG-8-POE UniFi Pro XG 8-port, Layer3 Etherlighting Switch, 8x 10GigE PoE++, 2x 10GigE SFP+

UniFi Pro XG 8-port, Layer3 Etherlighting Switch, 8x 10GigE PoE++, 2x 10GigE SFP+

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
UniFi Professional XG 8-port 10GbE Layer 3 Etherlighting PoE++ Switch. Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.
  • (8) Multi-speed 10 Gigabit POE++ Ethernet Ports
  • (2) 10G SFP+ Ports
  • 155W Total PoE Supply With Included AC Power Adapter
Dimensions 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7")
Port Layout 10 GbE RJ45: 8 (All PoE++) (10G/5G/2.5G/1G/100M), 10G SFP+: 2 (10G/1G)
Max. PoE Output Up to PoE++
Total PoE Availability 155W
Layer 3 Yes
Form Factor Compact desktop, wall
Etherlighting Yes
Switching Capacity 200 Gbps
Total Non-Blocking Throughput 100 Gbps
Forwarding Rate 149 Mpps
Supported VLANs 1,000
MAC Address Table Size 32,000
L3 Table Size ARP Entries: 12,000, IPv4 Routes: 12,000
Packet Buffer Size 2 MB
Access Lists IPv4: 128, MAC: 128
PoE Ports PoE++: 8
Max. PoE Wattage per Port by PSE PoE: 15.4W, PoE+: 30W, PoE++: 60W
Max. Power Consumption 61W (Excluding PoE output), 220W (Including PoE output)
Power Method AC/DC Adapter (included)
Power Input Method DC input
Power Supply AC/DC, external, 210W
Supported Voltage Range 50—57V DC
Management Ethernet, AR
Weight 1.6 kg (3.5 lb)
Enclosure Material SGCC steel
Mount Material Polycarbonate
ESD Protection Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature -5 to 45° C (23 to 113° F)
Ambient Operating Humidity 10 to 90% noncondensing
Etherlighting Ethernet: Yes, SFP+: Yes
System LEDs Yes
NDAA Compliant Yes
