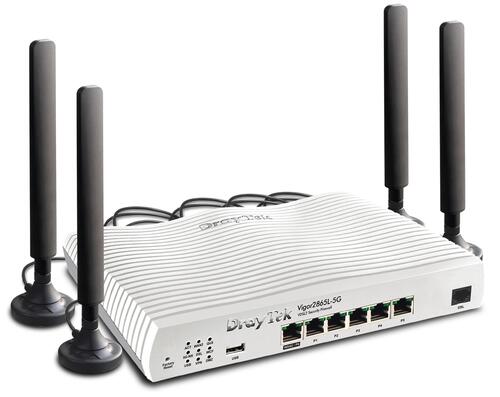

DrayTek DV2865L5G 5G Triple WAN Router, LTE, ADSL/VDSL, UFB, 5x Gig LAN

5G Triple WAN Router, LTE, ADSL/VDSL, UFB, 5x Gig LAN

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The Vigor2865L-5G series routers offer most of the features of the Vigor2865 series, with the addition of an integrated 5G/4G LTE mobile broadband Nano SIM module, supporting speeds up to 10 times faster than 4G.

The Vigor2865L-5G series includes one VDSL2 35b modem, one Gigabit Ethernet WAN/LAN configurable port, five Gigabit Ethernet LAN ports, and a dual Nano SIM card slot for 5G/4G LTE broadband connectivity, allowing for a second Nano SIM to be installed for failover. The WAN ports support NBN technologies including FTTP/N/B/C, HFC, Satellite and Fixed Wireless. All WAN interfaces, including the 3G/4G USB WAN interfaces, can be configured to Load Balance mode or Failover mode.

  • 5G/4G LTE modem with dual nano SIM slots (SIM slot 2 for Failover) for SA and NSA 5G WAN
  • Supports 5G NR Sub-6 SA Band: n1, 3, 5, 7, 8, 20, 28, 38, 40, 77, 78; great coverage in Australia and New Zealand
  • 5G Max. Data Rate NR SA: 2.4Gbps (DL) / 900Mbps (UL)**
  • 5G Max. Data Rate NR NSA: 3.4Gbps (DL) / 550Mbps (UL)**

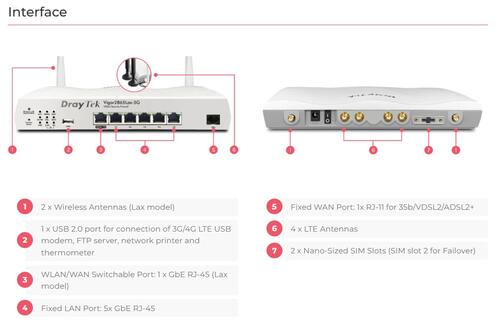

  • Multi-WAN with 1 x VDSL2 35b modem, 1 x configurable GbE WAN/LAN port, 1 x USB port, 2 x 5G/4G LTE nano SIM slots, and 2 x Wi-Fi WANs for Lax-5G model
  • 1 x xDSL port and 1 x configurable GbE WAN/LAN port for Failover, Load Balancing and High Availability mode
  • 1 x USB 2.0 port for connection of 3G/4G LTE USB modem, FTP server, network printer and thermometer
  • 5 x Gigabit LAN ports with multiple subnets and 60,000 NAT sessions
  • 32 x VPN tunnels (including 16 x OpenVPN/ SSL-VPN tunnels) with comprehensive secure protocols
  • Fast VPN throughput, VPN Load Balancing and backup for site-to-site applications
  • Hardware Acceleration and Hardware QoS for up to 8k NAT and routing connections, and 940Mbps (Single WAN) or 1.3 Gbps (Multi-WAN) Firewall speed
  • Integrated IEEE 802.11ax (WiFi 6, AX3000) wireless Access Point; dual band; up to 2402 Mbps throughput (Lax-5G model)
  • 16 x VLANs for secure and efficient workgroup management
  • IPv6 & IPv4
  • Up to 1022 IP addresses and 8 IP subnets
  • High Availability mode
  • Object-based SPI Firewall and CSM (Content Security Management) for network security
  • Supports VigorACS 3 Central Management Software for remote management
  • SD-WAN capability when used with VigorACS 3
  • Central VPN Management for up to 8 remote Vigor routers Learn more
  • Central AP Management for up to 20 Vigor Access Points Learn more
  • Central Switch Management for up to 10 VigorSwitches Learn more
  •


The Vigor2865L-5G series combines 4G LTE and 5G to provide excellent mobile coverage in Australia and New Zealand:
5G/LTE/WCDMA Specifications:

  • 5G NR Sub-6 SA Band: n1, 3, 5, 7, 8, 20, 28, 38, 40, 77, 78
  • 5G NR Sub-6 NSA Band: n1, 3, 5, 7, 8, 20, 28, 38, 40, 77, 78
  • 5G Max. Data Rate NR SA: 2.4Gbps (DL) / 900Mbps (UL)**
  • 5G Max. Data Rate NR NSA: 3.4Gbps (DL) / 550Mbps (UL)**
  • LTE FDD Band: B1, 3, 5, 7, 8, 20, 28
  • LTE TDD Band: B38, 40
  • LTE Category: Cat19 (DL) / Cat18 (UL)
  • WCDMA (3G) Band: B1, 8
  • WCDMA Max. Data Rate: 42Mbps (DL) / 5.76Mbps (UL)

**Typical 5G Downlink/Uplink speeds are 400Mbps/200Mbps, depending on the local conditions.

Key Features

Embedded SIM Slot
Provide 4G LTE/5G Internet access to where fixed lines are not available, without the need for a USB dongle.

Bandwidth Management
Prevent devices from hogging all the bandwidth with bandwidth limit policy, session limit policy, and QoS settings.

35b Supervectoring Modem
Integrated VDSL modem, supporting VDSL2 profile 35b supervectoring.

Load Balancing
Maximise throughput and reliability by using multiple Internet connections.

DrayDDNS
A free DDNS service to allow access to your router using a fixed hostname of your choice.

VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of Vigor2865L-5G series to the remote offices and teleworkers over the Internet.

Central AP Management
Use the Vigor2865L-5G Series router as a wireless controller to maintain and monitor VigorAPs.

SSL VPN
The VPN that works through firewalls, providing secure remote access to any network environment.

VPN Matcher
Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN.

Firewall & Content Filter
Filter webpages by URL keywords or web categories to block access to insecure or inappropriate content.

Central Switch Management
Easily set up VLANs from the router and get a centralised hierarchy view of the switches.

VoIP Friendly
Vigor2865L-5G Series can do port forwarding, and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless.
