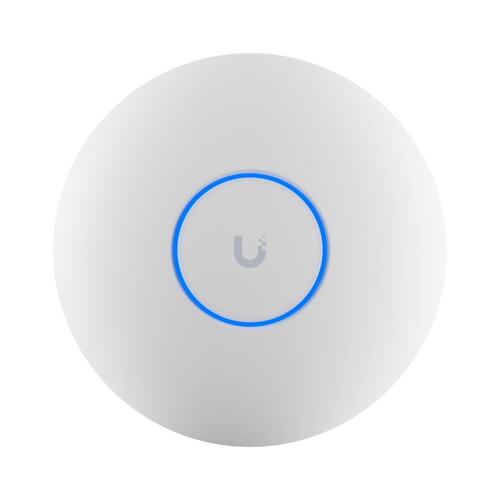

Ubiquiti U7-LR UniFi WiFi 7, 4.3Gbps Long-Range Access Point, 2.5 GbE

Ubiquiti UniFi U7-LR is a long range high power, ceiling-mount WiFi 7 AP with 5 spatial streams for extended signal range.
Ubiquiti Wifi7 AP's feature a dedicated spectrum analyzer radio the continuously scans your environment and proactively identifying interference to optimise Wi-Fi performance and reliability .
PRISM active RF filtering blocks adjacent channel 5GHz interference to boost SNR to increase range and stability in crowded RF environments.
Dimensions |
Ø175.7 x 43 mm |
WiFi Standard |
WiFi 7, 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160) |
Spatial Streams |
5 |
MIMO |
5 GHz 3 x 3 (DL/UL MU-MIMO), 2.4 GHz 2 x 2 (DL/UL MU-MIMO) |
Max. Data Rate |
5 GHz 4.3 Gbps (BW160), 2.4 GHz 688 Mbps (BW40) |
Antenna Gain |
5 GHz 6 dBi, 2.4 GHz 4 dBi |
Max. TX Power |
5 GHz 27 dBm, 2.4 GHz 26 dBm |
Coverage Area |
160 m² (1,750 ft²) |
Max. Client Count |
300+ |
Uplink |
2.5 GbE |
Mounting |
Ceiling, Wall (Plastic Mounting Plate included) |
Power Method |
PoE (Injector not included) |
Max. Power Consumption |
14W |
Supported Voltage Range |
42.5—57V DC |
Networking Interface |
(1) 2.5 GbE RJ45 port |
Weight |
448 g (15.8 oz) |
Management |
Ethernet |
Enclosure Material |
Polycarbonate, aluminium alloy |
Mount Material |
Polycarbonate, galvanized steel (SGCC) |
LEDs |
System: White/Blue |
Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz) |
NDAA Compliant |
yes |
Certifications |
CE, FCC, IC |
Ambient Operating Temperature |
-30 to 50° C (-22 to 122° F) |
Ambient Operating Humidity |
5 to 95% noncondensing |
Application Requirements |
UniFi Network: Version 9.1.120 and later, Mobile App: iOS version 10.20.2 and later, Android version 10.21.7 and later |
