DrayTek DAP805 Dual-Band 802.11ax (AX3000) WiFi 6 Mesh AP, 1x 2.5 GbE, 1x Gigabit LAN

Dual Band 802.11ax (AX3000) Access Point with Mesh Wi-Fi, 1 x GbE LAN port, 1 x 2.5GbE LAN port, and Virtual AP Controller
- Dual-Band : Concurrent 5GHz and 2.4GHz
- AX 3000 : 600Mbps in 2.4GHz and 2.4Gbps in 5GHz
- 1 x 2.5GbE LAN port : High-speed Internet
- 256 Users : 2.4GHz & 5GHz shared concurrently
- Concurrent Dual-band 802.11ax with 2×3 MU-MIMO
- 5 x Internal Antennas (iPA) (2x 2.4GHz + 3x 5GHz)
- Wi-Fi link speeds up to 2400 Mbps for 5GHz band and 600 Mbps for 2.4GHz band
- 1 x GbE LAN port
- 1 x 2.5GbE LAN port
- Features AirTime Fairness and Band Steering for a better Wi-Fi user experience
- 8 SSIDs for each Wi-Fi band with unique VLAN settings
- Improve roaming experience by Fast Roaming & AP-assisted Roaming
- Multiple operating modes – AP, Mesh (Mesh Root or Mesh Node) and Range Extender
- Plug-n-Play Meshing
- Built-in Diagnostic Tool (AP Discovery, Ping, Traceroute)
- Supports VigorACS 3 (Central Management system) for multi-site deployment
- Supports VigorConnect free software for local network management
- Virtual AP Controller for the deployment of up to 20 wireless VigorAPs
* The VigorAP 805 Wi-Fi Mesh can be set up with another VigorAP 805, VigorAP 1062C, VigorAP 906 or ax Wi-Fi routers such as Vigor2135ax, Vigor2136ax, 2765ax, 2766ax, 2865ax, 2866ax, 2927ax and VigorC510ax

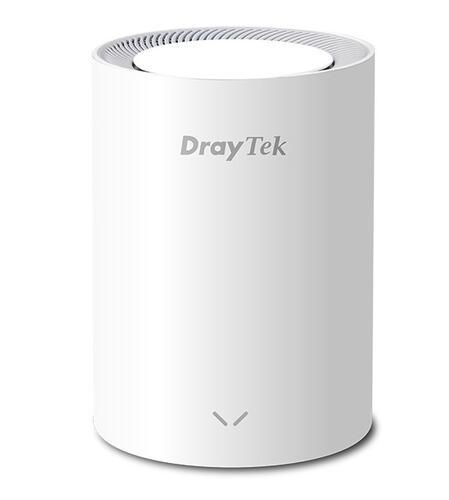

Stylishly Designed Access Point with Advanced Wi Fi 6 Performance
Experience seamless, high-speed connectivity with the DrayTek VigorAP 805, a dual-band Wi Fi 6 access point designed for superior performance and efficiency. Offering AX3000 speeds with 600Mbps on 2.4GHz and 2400Mbps on 5GHz, this sleek, desktop-friendly AP supports up to 256 concurrent clients, making it ideal for high-density environments.
With Wi-Fi Mesh support and an intuitive physical Mesh button, setting up a reliable, self-healing wireless network has never been easier. Advanced roaming protocols (802.11r/k/v) ensure smooth transitions between APs, eliminating dropped connections and solving sticky client issues for uninterrupted performance.
Built with dual LAN ports (1G & 2.5G Ethernet) for high-speed wired backhaul, the VigorAP 805 integrates effortlessly into business and home networks. Centralised management is available via VigorACS, VigorConnect, or DrayTek Wireless App, offering zero-touch deployment, monitoring, and remote maintenance.
Featuring band steering, airtime fairness, and security-focused MAC filtering, the VigorAP 805 is the perfect solution for businesses and homes seeking fast, efficient, and easily managed Wi-Fi.
WiFi 6
Feature OFDMA and MU-MIMO technology to improve WiFi efficiency and deliver higher wireless speed.
Band Steering
Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed.
Mesh
Easily link to other VigorAP to expand the wireless network.
Assisted Wi-Fi Roaming
Solve the sticky client problem and improve Wi-Fi roaming experience.
Multiple SSID
Mapping Wi-Fi clients to different VLANs and have a different set of security standards.
Wi-Fi Scheduling
Schedule Wi-Fi On and Off to control wireless access and save energy.
Airtime Fairness
Equalize the transmission time of each client so the legacy devices won’t slow everyone down.
Virtual AP Controller
All-in-one management platform for VigorAP 805 to maintain and monitor the VigorAPs.
In-the-Box
VigorAP 805
RJ-45 Cable (Ethernet)
Power Adapter
Quick Start Guide
Specifications
Ports |
|
1 GbE |
1 |
2.5 GbE |
1 |
LAN |
|
DHCP |
DHCP Client |
Static IP |
|
Bind IP to MAC |
|
802.1q tag-based VLAN |
WLAN |
|
Band Type |
Dual-Band |
WiFi 6 |
|
OFDMA |
|
Max. Clients |
256 |
2.4GHz WLAN |
802.11 b/g/n/ax |
5GHz WLAN |
802.11 a/n/ac Wave 2/ax |
Antennas |
5x Internal iPA (2x 2.4GHz + 3x 5GHz) |
2.4GHz Antenna Gain |
4.5 dBi |
5GHz Antenna Gain |
4.9 dBi |
2.4GHz Link Rate |
600 Mbps |
5GHz Link Rate |
2400 Mbps |
Operating Mode |
AP, Mesh Root, Mesh Node, Range Extender |
Max. Number of SSID |
16 (8 per radio band) |
Security Mode |
OWE, WEP, WPA, WPA2/WPA, WPA2, WPA3/WPA2, WPA3 |
Authentication |
Enterprise, Personal |
WMM |
|
AirTime Fairness |
|
Band Steering |
|
Roaming |
AP-Assisted Roaming, Pre-Authentication, 802.11r, 802.11v, 802.11k |
WPS |
PIN Code, WPS Button |
WDS |
|
Objects |
|
MAC Object |
|
MAC Group |
|
Schedule |
APP Notifications |
|
System |
WUI/SSH/Telnet Login |
Wireless LAN |
Mesh Node online/offline |
Authentication |
|
RADIUS Authentication |
Certificates |
|
Local Certificates |
|
Trusted CA |
|
Local Services |
|
Backup & Restore |
|
Security |
|
MAC Address Filter |
128 (Max. entry number) |
Monitoring |
|
DHCP Table |
|
ARP Table |
Available after future firmware update |
LLDP Neighbors information |
|
Web Syslog |
|
Internet Detection |
|
Clients List |
|
Utility |
|
Ping Tool |
|
Trace Tool |
|
Web CLI |
System Maintenance |
|
Syslog |
|
SNMP |
v1, v2c, v3 |
Firmware Upgrade |
HTTP, TFTP, TR-069 |
Backup/Restore |
|
Role-based Privilege |
|
System Reboot |
|
Management |
|
Service Control |
HTTP, HTTPS, Telnet |
TR-069 |
ACS and CPE Settings |
Mesh |
Node, Root |
Virtual AP Controller |
Device up to 20 |
VigorConnect Management |
Since f/w V5.0.1 |
VigorACS Management |
Since f/w V5.0.1 |
Physical |
|
Environment |
Indoor |
Mounting |
Desktop |
Power Method |
12V DC, 1A |
Max. Power Consumption |
12 watts |
Dimension |
110mm x 110mm x 153mm |
Weight |
355g |
Operating Temperature |
0 to 40°C |
Storage Temperature |
-20 to 60°C |
Operating Humidity |
10 to 90% non-condensing |
