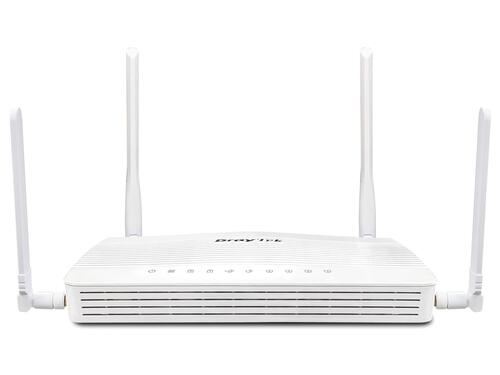

DrayTek DVC510AX Gigabit WAN router with Dual-SIM 5G, 802.11ax Wi-Fi 6

5G & WiFi 6 for Next-Gen Connectivity
The Vigor C510 Series is a high-performance Cellular WAN Security Router featuring embedded 5G cellular connectivity for seamless and reliable internet access. Designed as a primary WAN solution, it is set to operate in "Always On" mode by default, ensuring uninterrupted connectivity for business-critical operations.

With dual SIM slots (one active at a time), the router offers enhanced redundancy to maintain continuous cellular network access. It is equipped with advanced features such as VPN, QoS, route policy, web content filtering, Identity and Access Management (IAM), a hotspot web portal, and more, making it ideal for businesses requiring robust and secure network solutions.

The Backup WAN feature provides failover options through Ethernet WAN or WiFi (2.4 GHz/5 GHz) connectivity. The Vigor C510 Series comes equipped with built-in support for 802.11ax (WiFi 6), ensuring high-speed and efficient wireless performance.

• 5G : support SA and NSA module
• 4 VPN : IPsec throughput up to 370 Mbps
• AX 3000 : Delivers link rate up to 3 Gbps
• 50k Sessions : Recommended for a network of 30 hosts

Embedded SIM Slot
Provide 4G LTE/5G Internet access to where fixed lines are (temporarily) not available without the need for a USB dongle.

Firewall & Content Filter
Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.

VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of Vigor C510 Series to the remote offices and teleworkers over the Internet. Learn more

URL/IP Reputation
Improve network security by classifying URLs and IPs to control web access and protect against online threats. Learn more

EasyVPN
Secure VPN in Seconds: No Keys, No Configs, Just Login.

Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality WLAN. Learn more

IAM
A solution that manages digital identities, authentication, and access control to ensure the right users or groups have appropriate access to critical resources.

Virtual AP/Switch controller
All-in-one management platform for Vigor C510 Series to maintain and monitor the VigorAPs and VigorSwitches.

Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.

Mesh
Easily link to other VigorAP to expand the wireless network.

DrayDDNS
The free DDNS service for you to access the router by a fixed hostname of your choice.

5G Router with High Speed Mobile Connectivity
Integrated 5G/LTE modem with Category 19, the carrier aggregation method can get high-speed mobile broadband connectivity for Internet access and VPN.

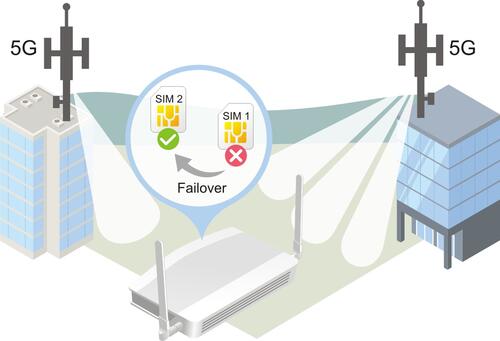

Dual-SIM Slot allows using two mobile network providers. So that in the event of one mobile network not providing Internet connectivity, the router can switch to a secondary SIM and cellular network connection.

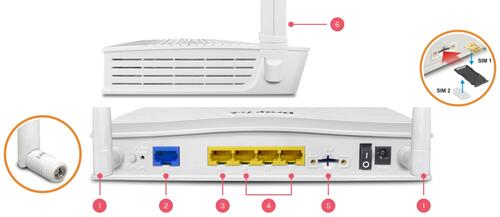

4x Cellular antennas (2x internal + 2x external) allow users to find the optimum position to install the router to get the best signal coverage.

Effortless Secure Access with EasyVPN
Configuring a VPN can be complicated, requiring users to navigate protocol selection, manual setup, and troubleshooting. Vigor Router supports IPsec, WireGuard, and OpenVPN, but setting them up traditionally can be overwhelming.

That’s where EasyVPN comes in—a seamless solution designed to simplify VPN connectivity. With EasyVPN, users can establish secure connections without the hassle of:

• Generating WireGuard keys
• Importing OpenVPN configuration files
• Uploading certificates
• By automating these steps, EasyVPN ensures a fast, secure, and user-friendly VPN experience for everyone.

WiFi6 capacity
The Vigor C510 Series is a 2x2 dual-band WiFi router designed to deliver exceptional wireless performance. With support for 160MHz bandwidth and 1024-QAM, it significantly boosts connection speeds, achieving a theoretical maximum of up to 3000 Mbps. This includes 574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band, ensuring high-speed connectivity for a wide range of devices.

OFDMA (Orthogonal Frequency Division Multiple Access) is a key characteristic of the WiFi 6 certification program. Included in the WiFi 6 standard, OFDMA relies on efficient scheduling techniques to function effectively in congested and complex network environments. As WiFi 6 gains traction among manufacturers and the broader industry, it becomes crucial to analyze and document the potential benefits of successful OFDMA implementation and the ability to measure its impact.

MU-MIMO is similar to multiple trucks serving users simultaneously. It increases capacity and results in higher speed per users.

BSS Coloring is a technique used to improve co-existence of overlapping BSSs and to allow spatial reuse within one channel .Simply say BSS coloring helps in mitigating problem of co-channel interference found in legacy wifi networks.

TWT (Target wake time ) ensures that end devices spend more time in standby while sending and receiving data more economically. This reduces energy consumption and increases overall efficiency within the home network. It allows an AP to manage activity in the WiFi network, in order to minimize medium contention between Stations (STAs), and to reduce the required amount of time that an STA in the power-save mode needs to be awake.

WPA3 (WiFi Protected Access 3) enhances the security of WiFi networks by addressing vulnerabilities in previous standards (like WPA2) and introducing new features to protect modern wireless communications better. WPA3 was introduced in 2018 to provide stronger authentication, better encryption, and improved defenses against attacks such as brute-force password guessing and man-in-the-middle exploits.

URL Reputation is a cloud-based technology to provide Threat Intelligence Service. This service adds an extra layer of security protection to LAN client for their online activities.

There are 82 categories in total, 10 of which are security-focused, providing comprehensive and up-to-date protection to your home network or office network.

The various categories cover network security, including malware, spyware, adware, parental control for child protection, business, social networking, and more to ensure a safe online environment while also boosting employee productivity and can reach efficient bandwidth management.

IP Reputation
Every communication over the internet involves IP addresses-source and destination. Cybercriminals often leverage known malicious IP addresses to carry out attacks using techniques like:

Botnets
TOR nodes and anonymous proxies
Command-and-control (C2) servers
Phishing servers
DDoS attacks
Risk bar of IP Reputation
Blocking communication with these harmful IPs is essential, but it requires dynamic, predictive intelligence-a challenge that static blocklists cannot meet. The IP Reputation Service solves this by providing real-time scoring and classification of IP addresses, enabling automatic blocking of:

High-risk traffic
Suspicious proxies
Malware distributors
IPs linked to recent malicious behavior
The system evaluates IPs across multiple criteria, including infection history, protocol usage, and attack frequency. Each IP is given a reputation score, which determines whether it should be trusted, monitored, or blocked outright.

WiFi Roaming
Solve the sticky client problem and improve WiFi roaming experience.

Proactive Roaming
WiFi clients automatically hand-off to another AP/router with a better signal strength when moving around in an area with multiple APs/routers.

However, WiFi clients sometimes stick to the AP/router with weak signal, and not switching to the one with better signal.

Assisted Roaming
Vigor Router will disassociate the WiFi clients who are out of the effective transmission range, forcing them to pick up another access point/router with a stronger signal.

Stronger Signal Guaranteed
Furthermore, with "Minimum RSSI with Adjacent AP" option, Vigor Router can disassociate the client only when other AP/router has a stronger wireless signal, and keep client stayed when there’s no other AP/router nearby.

Mesh
You can connect 7 APs, and form the wireless Group within the same network which creates MESH links automatically based on the optimum algorism among the root and node APs.

Intelligent Auto-Configuration
When connecting to the Vigor C510 Series, this feature automatically detects access points (APs) and switches. For smaller setups with fewer than 8 APs, it seamlessly enables Mesh mode (1 root AP and 7 node APs). In larger wired deployments, it activates AP management mode for manage up to 20 devices, while switch management supports up to 5 switches, ensuring enhanced control and scalability.

In the Box

• Vigor C510 Series Router
• Cellular Antenna x 2
• WiFi Antenna x 2
• RJ-45 Cable (Ethernet)
• Power Adapter
• Quick Start Guide
