Ubiquiti UNAS-PRO UniFi Drive, Managed 2U NAS with 7xHDD and 10Gbps Support

UniFi Drive, Managed 2U NAS with 7xHDD and 10Gbps Support

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

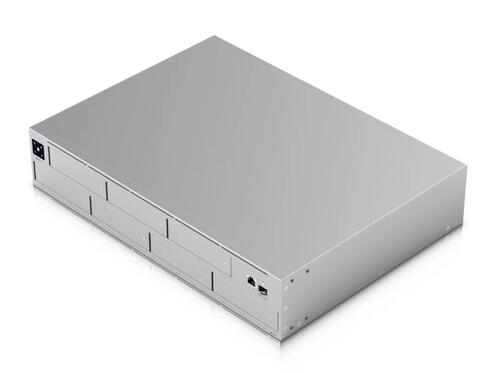

2U rack-mount NAS with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing.

Mechanical
Dimensions 442 x 325 x 87 mm (17.4 x 12.8 x 3.4")
Weight Without mounting brackets: 9.2 kg (20.3 lb)
With mounting brackets: 9.5 kg (20.8 lb)
Enclosure material SGCC steel
Mount material SGCC steel
Hardware
Processor Quad-Core ARM® Cortex®-A57 at 1.7 GHz
System memory 8 GB
Management interface Ethernet In-Band
Networking interface (1) GbE RJ45 port
(1) 1/10 GbE SFP+ port
RF interface Bluetooth 4.1
Power method (1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.91A
Power supply AC/DC, internal, 200W
Supported voltage range 100—240V AC
Max. power consumption 160W
Max. power budget for Drives 135W
ESD/EMP protection Air: ± 12kV, contact: ± 8kV
LCM Display (1) 1.3" touchscreen
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, CE, IC
NDAA Compliant Yes
LEDs
Ethernet Green: 1 Gbps
Amber: 10/100 Mbps
SFP+ White: 10 Gbps
Green: 1 Gbps
HDD White: disk detected
Amber: disk error
RPS Blue: ready
