Yealink ROOMPANEL-PLUS-E2 Purpose-Built Meeting Room Scheduling Panel, Advanced

Purpose-Built Meeting Room Scheduling Panel, Advanced

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
Yealink Room Panel Plus E2 is the premium version of Room Panel E2

• Display: Still 8 inches, but with higher brightness and better anti-glare
• Sensors: Includes environmental sensors (e.g., temperature, humidity, CO2) for smart room management
• Additional Features:
NFC/RFID reader for user check-in via access cards or badges
Advanced APIs for building integrations or automation
• Target Use Case: Organizations that want environmental monitoring, access control integration, or richer smart building capabilities

The Yealink RoomPanel E2 Plus simplifies your meeting room scheduling with its easy-to-use touch screen, allowing you to view meeting details and reserve rooms effortlessly. It integrates seamlessly with platforms like Microsoft Teams® and Zoom Rooms™, offering a versatile solution for modern workspaces.

  • Support dual-band 802.11ac Wi-Fi module for wireless deployment with enhanced network stability and efficiency.
  • Embedded dual Bluetooth 5.0 chipsets for extended features such as Bluetooth gateway – pairing with RoomSensor to enable auto reserve/release.
  • Support NFC/RFID for advanced ID authorization and attendee check-in.
  • Built-in microphone array and dual speakerphones for future expansions like virtual assistants, administrator call, etc.

RoomPanel E2 is greater now with powerful upgrades – now you can enjoy smoother collaboration and hardware-backed security to safeguard your data. Powered by Android 13, it delivers faster performance, improved stability, and a user-friendly experience.

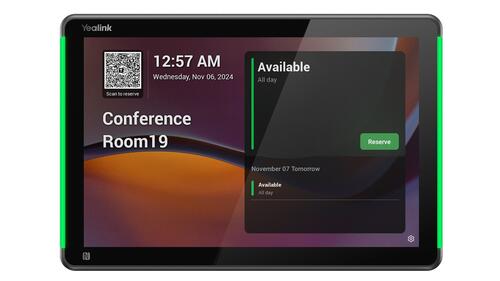

The RoomPanel E2 is designed for easy viewing and smooth usability in modern workspaces. With its spacious screen, sleek design, and LED status lights, it allows users to quickly check room availability and reservation details.

Running on Android 13, the RoomPanel E2 connects with Bluetooth 5.0, Wi-Fi 5, NFC/RFID, sensors, microphones, and speakers, providing an enhanced user experience—just one tap to get started.

Checking meeting room availability is now effortless with high-visibility, full-RGB LED bars. These bilateral cambered lights display different colors to indicate status, making it easy to see the room’s availability from any angle.

With the included brackets and tape, the RoomPanel E2 can be easily mounted at adjustable tilt angles on any surface, such as concrete, glass, wood, and more. Supporting both PoE and DC power, installation is streamlined and free from cable clutter.

Display
• Size: 8″ LCD Panel (16:10)
• Resolution: 1280×800
• Contrast: 1000:1
• Viewing Angle(H/V): ±80°/±80°
• 10 points capacitive multi-touch
• Anti-fingerprint Coating
• Proximity Sensor: Yes
• Ambient Light Sensor: Yes

Connectivity
• Ethernet: 1 x Fast ethernet port (10/100Mbps)
• Wi-Fi: 802.11a/b/g/n/ac
• Bluetooth: 5.0
• RFID/NFC: 13.56MHz
• USB Port: 1 x USB-C port
• Button: 1 x Reset pin hole

Audio
• Microphone: 2 x Array Microphones
• Speaker: 2 x 1 Watt Speakers

Power Supply
• Power over Ethernet (IEEE 802.3af)
• 12V Power Adapter

Mounting Options
• Surface mount for 2-gang US electrical box
• 20° tilt mount kit for wall or glass
• Flush mount kit for wall or glass

Dimensions
• Display size (mm): 209 x 146 (8.23” x 4.06”)
• Weight: 0.53kg (1.168 lb)

Yealink part code 1303196
