  • UniFi Flex Mini Compact, 8-port 2.5G PoE++ Switch

Ubiquiti USW-FLEX-2.5G-8-POE UniFi Flex Mini Compact, 8-port 2.5G PoE++ Switch

UniFi Flex Mini Compact, 8-port 2.5G PoE++ Switch

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.
(power adapter not included)

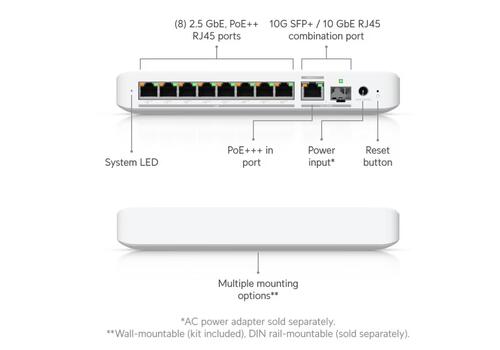

Port Layout:
2.5 GbE RJ45 (2.5G/1G/100M/10M) x 8, All PoE++
10 GbE RJ45 (10G/5G/2.5G/1G/100M) x 1, PoE+++
10GigE SFP+ x 1

Max. PoE Output : Up to PoE++

Total PoE Availability
PoE+++ input: 76W
PoE++ input: 46W
PoE+ input: 16W

210W AC adapter input: 196W

Form Factor : Compact Desktop, wall, DIN, magnetic

Layer 2 Features:
STP & RSTP
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
Port Isolation
Port Mirroring
Jumbo Frames
Loop Protection

Max. Power Consumption:
14W (Excluding PoE output) with PoE input
17W (Excluding PoE output) with AC adapter input
210W (Including PoE Output)

Power Method:
(1) AC/DC adapter (Optional Purchase)
(1) PoE+++

Power Input Method:
DC Input
PoE

Supported Voltage Range
50—57V DC/PoE

Weight : 567 g
Enclosure Material : Polycarbonate
Mount Material : Polycarbonate
Ambient Operating Temperature : -20 to 45° C
Ambient Operating Humidity : 10 to 90% noncondensing

Dimensions
212.9 x 99.4 x 33.5 mm
