Ubiquiti UA-HUB-GATE UniFi Access Gate Hub

UniFi Access Gate Hub

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

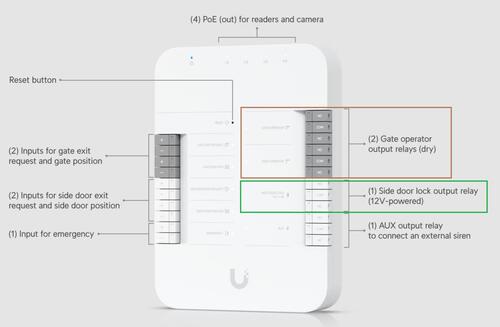

The Ubiquiti Gate Hub is an advanced Gate Hub that enables seamless gate access control via connected Access readers or Intercom.

  • (2) Gate operator terminals (dry)
  • (1) Lock terminal (12V) for side door
  • (1) AUX terminal for an external siren
  • (5) Additional inputs (sensors and emergency)
  • License plate unlock (when paired with AI Camera)
  • Connect and power using PoE++
  • Connect up to four UniFi Access readers or UniFi Protect cameras

Dimensions: 175 x 126 x 26 mm

Weight: 460 g

Optional LPR Cameras:

UVC-AI-Turret
UVC-AI-Dome
UVC-AI-DSLR
UVC-AI-Pro
UVC-AI-Theta
UVC-AI-Bullet


Supported Doors : 1 gate, 1 side door
Input Terminals : (1) Gate exit request (1) Gate position (1) Side door exit request (1) Side door position (1) Emergency
Power Method : PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
NDAA Compliant
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I


Enclosure Material : Polycarbonate
Mounting : DIN-rail (Included)

Hardware
Digital Input : Gate exit request, gate position, side door exit request, side door position, emergency
Dry Output Relay : (2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A
Powered Output Relay : Side door lock: 12V DC, up to 1A
Indoor only: device itself Outdoor: with waterproof junction box
Ambient Operating Temperature : -30 to 60° C
Ambient Operating Humidity : 5 to 90% noncondensing
Networking Interface : (5) 10/100/1000 Base-T
PoE Interface : (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, Max. 28W
Max. Power Consumption : 22W (Without PoE output) 50W (With PoE output)
