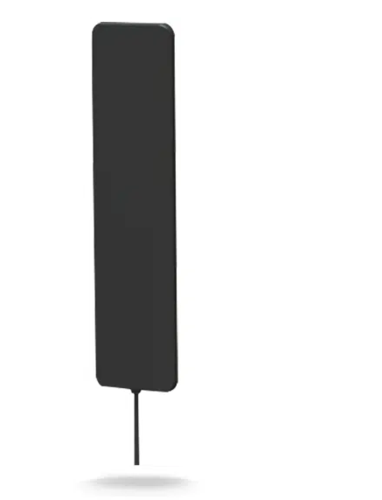

Panorama Antennas EF-6-60-3SP Easy-Fit Portable Antenna with Adhesive Pad for 4G/5G Routers, 3m Cable, SMA male

Easy-Fit Portable Antenna with Adhesive Pad for 4G/5G Routers, 3m Cable, SMA male

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The EF-6-60 is a discrete and easy to fit antenna, designed for use with vehicle installed 4G/5G routers.

It has a compact, robust housing and is suitable for installation on vehicle glass or a non-conductive panel using the supplied automotive-grade adhesive pad.

For temporary installation, a pair of hook/loop fixing pads are also included. The antenna is ultra-wideband, ground plane independent, and is also suitable for IoT, M2M and mobile data applications.

Covering 617-960 MHz & 1427-6000 MHz, the EF-6-60 supports the full range of 2G/3G/4G and 5G (sub 6 GHz) frequencies globally and is available with SMA connectors.

The antenna has a UV resistant ASA plastic housing and is suitable for use in semi-exposed environments. Two or four of these antennas, with suitable spacing, can create a MIMO or 4x4 MIMO system.

  • Omnidirectional adhesive mount cellular antenna
  • Supports 617-960 & 1427-6000 frequency ranges
  • 6 dBi peak gain
  • Operating temperature from -40 to 80°C
  • Acrylic adhesive pad
  • Ground plane independent
  • SMA male connector
  • 3 m (10') FR RG174 cable
  • IP55 protection
ELECTRICAL DATA
Pattern Omnidirectional
Max Input Power(W) 10
Frequency Range | Gain 617 – 960MHz | 2dBi; 1427 – 2170MHz | 3.5dBi; 2200 – 2700MHz | 4.5dBi; 3400 – 4200MHz | 4.5dBi; 4900 – 6000MHz | 6dBi
Cellular LTE Elements No
WIFI Elements No
UHF Elements No
GPS DATA
Number of GPS Elements No
MECHANICAL DATA
Colour Black
Length 197 (mm) | 7.76 (in)
Width 52 (mm) | 2.05 (in)
Diameter 2.5 (mm) | 0.10 (in)
Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE 3 (m) | 9.84 (ft)
Cable Type (LTE) FR RG174
TERMINATION DATA
Connector (LTE) SMA (m)
MOUNTING DATA
Mounting Type Temp Glass Mount
Mounting Methods Glass Mount
APPROVALS DATA
IP Rating IP55
Cable Flammability EN45545-2 HL3; UN ECE R118; EN6722
TECHNOLOGY DATA
Technology 2G/3G/4G/5G
