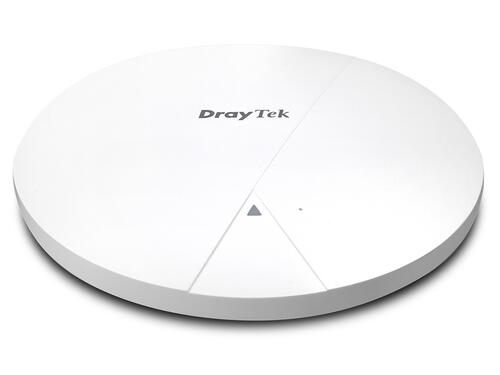

DrayTek DAP1062C 4x4 AX6000 Dual Band WiFi-6 Ceiling AP

4x4 AX6000 Dual Band WiFi-6 Ceiling AP

High-Performance AX6000 Access Point with Enhanced DrayOS 5 Features

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

VigorAP 1062C is a high performance dual-band WiFi 6 Access Point, delivering 1.2Gbps in 2.4GHz and 4.8Gbps* in 5GHz. The 2.5GbE port and MU-MIMO technology support up to 256 concurrent clients, making the AP a perfect choice in high-speed and high-density environments.

• Concurrent Dual-band Wave 2/802.11ax (WiFi 6, AX6000) with 4×4 MU-MIMO
• Wi-Fi speeds up to 4804 Mbps for 5GHz band and 1148 Mbps for 2.4GHz band

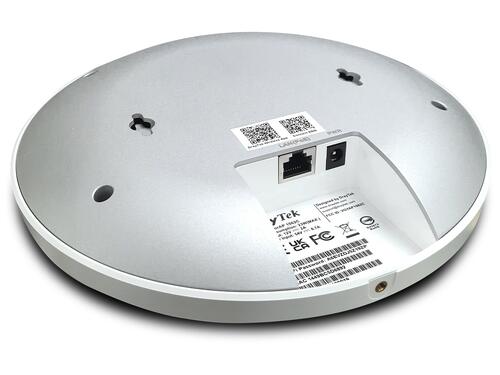

• 1 x 2.5 GbE RJ-45 PoE PD port
• Features AirTime Fairness and Band Steering for better Wi-Fi user experience
• Built-in RADIUS server for 802.1x authentication
• 8 SSIDs for each Wi-Fi band with unique VLAN setting, Access Control, and Bandwidth Limit policies
• Improve roaming experience by Fast Roaming (802.11r and 802.11k) & AP-assisted Roaming
• Multiple operating modes – AP, Mesh* (Mesh Root or Mesh Node) and Range Extender
• Plug-n-Play Meshing*
• Built-in Diagnostic Tools ( AP Discovery)
• Supports VigorACS 3 Central Management Software for remote management
• Supports VigorConnect free software for local network management
• Manageable from Smartphone or Tablet using DrayTek Wireless App
• Virtual AP Controller for Managing Up to 50 VigorAPs
• Ceiling-mount housing

* The VigorAP 1062C Wi-Fi Mesh can be configured only with another VigorAP 1062C, AP 905, AP 805, AP962C or with ax-series Wi-Fi routers such as the Vigor2135ax, 2136ax, 2765ax, 2766ax, 2865ax, 2866ax, 2927ax and C510ax.



Specifications

Interface

LAN Port

1 x 2.5G/1G/100M/10M Base-T RJ-45

PoE

PoE+ (802.3af/at)

Antenna

4 x Internal PiFA DB
Gain: 4.9 dBi for 5GHz, 4.2 dBi for 2.4GHz

Button

1 x Factory Reset Button
1 x Wireless On/Off/WPS
1 x Power On/Off

WLAN

WiFi 6



2.4GHz Standard

IEEE 802.11b/g/n/ax 2×2 MIMO, up to 1024-QAM

5GHz Standard

IEEE 802.11a/n/ac Wave 2/ax 2×2 MU-MIMO, up to 1024-QAM

2.4GHz Link Rate

Up to 1200 Mbps

5GHz Link Rate

Up to 4800 Mbps

Max. Number of Concurrent Active Clients

256 (128 per radio band)

Operating Mode

AP, Mesh Root, Mesh Node, Range Extender

Roaming

AP-Assisted Roaming, PMK-Caching, Pre-Authentication, 802.11r, 802.11k

AirTime Fairness



Band Steering



Auto Channel Selection



OFDMA



Max. Number of SSID

16 (8 per radio band)

WDS



Client Numer Limit

Per radio, Per SSID

Connection Time Control



WMM



IGMP Snooping





Security

Security Mode

WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP

Authentication

Personal, Enterprise

WPS

PIN, PBC

Hidden SSIDs



MAC Address Filter

Up to 128 entries

Wireless Client Isolation



Mobile Device Management



Application

Built-in RADIUS Server



RADIUS Proxy

PEAP, EAP-TLS

Hotspot Web Portal



DHCP

DHCP Server, DHCP, Client, DHCP Relay Agent

Static IP



MAC Clone



802.1q VLAN



Schedule

Wi-Fi Up/Down



Management

Local Service

HTTP, HTTPS, Telnet

Configuration

Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root

Firmware Upgrade

HTTP, TFTP, TR-069

Tools

Speed Test, AP Discovery, Statistics, Interference Monitor

Configuration Backup and Restore



Syslog



Mail Alert



SNMP

v1, v2c, v3

Managed by VigorACS
*since ACS 3 V3.4.0



Central AP Management

50 VigorAP

Physical

Environment

Indoor

Mounting

Ceiling Mount, Wall Mount, Desktop

Power Method

12V DC, 2A

Max. Power Consumption

23 watts

Dimension

208mm x 208mm x 32.1mm

Weight

812.6g

Operating Temperature

0 to 45°C

Storage Temperature

-20 to 60°C

Operating Humidity

10 to 90% non-condensing
