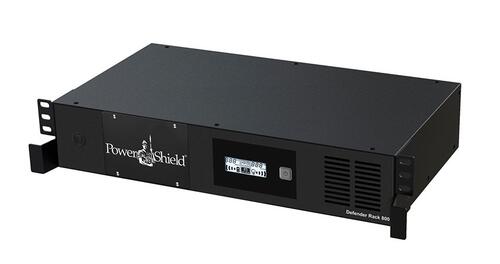

Powershield PSDR800 Defender 2RU Shallow Depth Rackmount 800VA (480W) Line Interactive UPS
Defender 2RU Rackmount 800VA (480W) Shallow Depth UPS
- Perfect for shallow, wall mounted comms cabinets
- Line Interactive with AVR (Automatic Voltage Regulation)

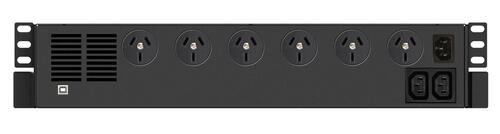

- 6x NZ Power Sockets with Surge + Battery Backup
- 2x 10Amp IEC Sockets
- Dimensions: 230 x 438 x 86mm
- Net Weight: 7.7kgs
- Compact Footprint - only 230mm Deep
Defender 2RU Rackmount 800VA (480W) Line Interactive UPS, 6x NZ 3-Pin 2x IEC 10A Power Sockets with Battery Backup & Surge Protection. Short Depth Footprint. Dims 230x438x86mm (LxWxH) 2RU
PowerShield has taken the smarts from their most popular range of UPSs and built them into a rack mount UPS - perfect for shallow, wall mounted Comms cabinets.
- Compact Footprint - 230mm Deep
- User-Replaceable Batteries
- Silent Operation - No Fans
- Compatible with all wall-mounted racks
- Extra IEC and Australian Outlets
- All Metal Enclosure
- 2RU Size
- Perfect for Shallow Wall Mounted Comms Cabinets
- The Defender USB communication port is compatible with Synology and QNAP NAS products.
|
Capacity |
800VA / 480W |
|
Topology |
Line Interactive |
|
INPUT |
|
|
Voltage |
240Vac (Nominal) |
|
Voltage Range |
177-290Vac |
|
Frequency Range |
50/60Hz (auto sensing) |
|
OUTPUT |
|
|
Output Voltage |
240Vac ± 10% |
|
Frequency Range (Batt. Mode) |
50Hz/60Hz ±1Hz |
|
Transfer Time |
6ms (Typical) |
|
Waveform (Batt. Mode) |
Simulated Sine Wave |
|
Australian Outlets - UPS & Surge Protection |
2x 10A IEC Sockets, 6 x NZ / Australian Sockets |
|
BATTERY |
|
|
Battery Type & Number |
12V / 9AH (x1) |
|
Typical Recharge Time |
4~6 hours recover to 90% capacity |
|
Backup Time (50% Load) |
8 min |
|
PROTECTION |
|
|
Full Protection |
Overload, discharge and overcharge protection |
|
Surge Protection |
312Joules / 6500Amps |
|
COMMUNICATIONS & MANAGEMENT |
|
|
Interface |
USB interface |
|
Software |
NetGuard® supports - Windows®, Linux, Unix and Mac (Free Download) |
|
LCD Alarm |
AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload |
|
Audible Alarm |
Battery Mode, Low Battery (Batt. Mode), Fault, Overload |
|
PHYSICAL |
|
|
Dimension L x W x H |
230 x 438 x 86mm (2RU) |
|
Net Weight |
7.7kg |
|
OPERATING ENVIRONMENT |
|
|
Temperature |
0°C~40°C |
|
Humidity |
0%-90% RH (non-condensing) |
|
Noise Level |
Less than 5dBA @ 1meter (no fan) |
|
COMPLIANCE |
|
|
Safety/EMC |
EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006 |
|
RoHS |
Directive 2011/65/EU |
|
