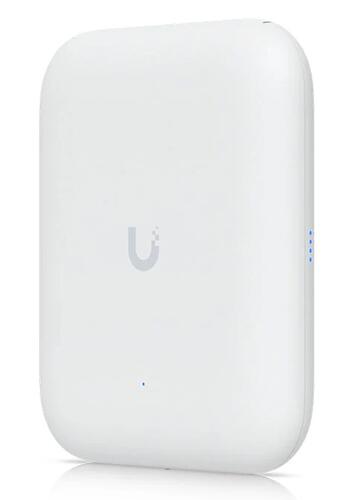

Ubiquiti U7-OUTDOOR U7 Outdoor WiFi 7 AP with Integrated Directional Super Antenna
The UniFi U7 Outdoor WiFi 7 AP is an all-weather WiFi 7 AP with 4 spatial streams, an integrated directional antenna, additional omni-directional antennas, and versatile mounting options.
- WiFi 7
- 4 spatial streams
- 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
- Software-switchable from internal directional to included external omni antennas
- 250+ connected devices
- Powered using PoE+
- 2.5 GbE uplink

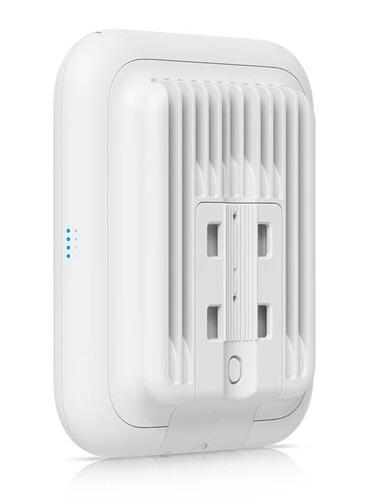

- Versatile wall and pole mounting
- Weatherproof (outdoor exposed)
- Internal Antenna Beamwidth : 90 degrees for 2.4 GHz and 45 degrees for 5Ghz
- (2) External Omni Antennas

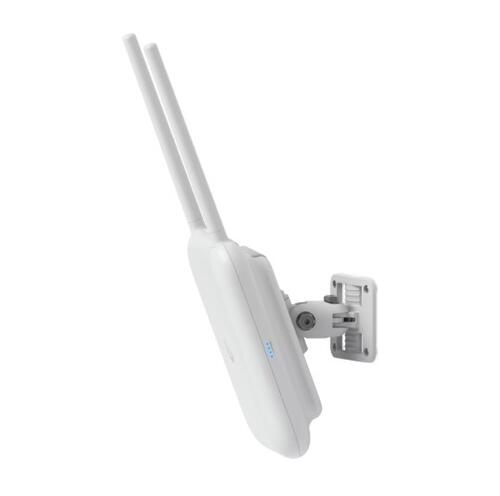

For optimal performance, the U7-Outdoor uses a high-gain, integrated directional antenna by default, but it can be adapted for wider, omnidirectional coverage using the included external antennas.
|

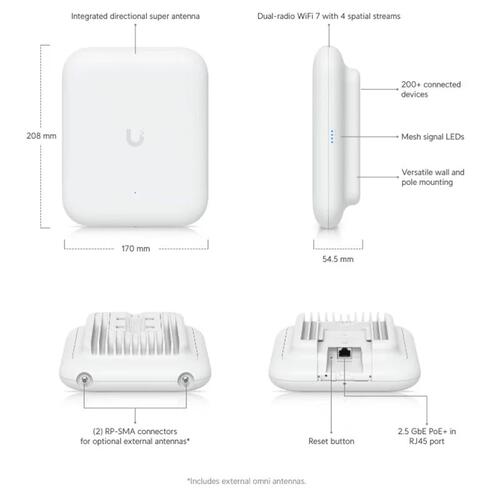

Dimensions |
170 x 208 x 54.5 mm |
|
Weight |
1.2 kg |
|
Enclosure Material |
UV-stabilized polycarbonate, aluminium alloy |
|
Mount Material |
Polycarbonate, SGCC steel |
|
Pole Mount Diameter |
25–60 mm on pipe outer diameter |
|
Wind Survivability |
74.6 N at 200 km/h |
|
Weatherproofing |
IPX6 |
|
Networking Interface |

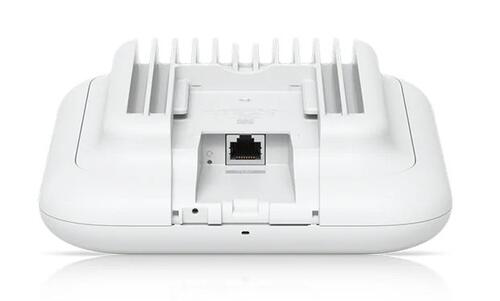

(1) 1/2.5 GbE RJ45 port |
|
Management Interface |
Ethernet |
|
Power Method |
PoE+ |
|
Power Supply |
UniFi PoE Switch |
|
Supported Voltage Range |
42.5—57V DC |
|
Maximum TX Power |
2.4 GHz @ 23 dBM, 5 GHz @ 26 dBm |
|
Antenna Gain |
2.4 GHz @ Directional internal: 8 dBi/External omni: 3 dBi, 5 GHz @ Directional internal: 12.5 dBi/External omni: 4 dBi |
|
Antenna Beamwidth |
2.4 GHz @ 90°, 5Ghz @ 45° |
|
Antennas |
(1) Directional internal antenna, (2) External omni antennas, (2) RP-SMA connectors for external antenna |
|
Features |
Wireless Meshing, Band Steering, 802.11v BSS Transition Management, 802.11r Fast Roaming, 802.11k Radio Resource Management (RRM), Advanced Radio Management, Passpoint (Hotspot 2.0), Captive Hotspot Portal, Custom Branding Landing Page, Voucher Authentication, Payment-Based Authentication, External Portal Server Support, Password Authentication, Guest Network Isolation, Private Pre-Shared Key (PPSK), WiFi Speed Limiting, Client Device Isolation, WiFi Schedules, RADIUS over TLS (RadSec), Dynamic RADIUS-assigned VLAN |
|
Mounting |
Wall, ceiling, pole (Included) |
In the box
U7 Outdoor Access Point
2x External Omni Antenna
Mounting Hardware:
Wall mount bracket
Pole mounting bracket
Mounting template
Screws and plastic clips/anchors
Hose clamps for pole mounting
Documentation
|
