  • 40Gbps 1310nm QSFP+ module, 10KM, DDM LC

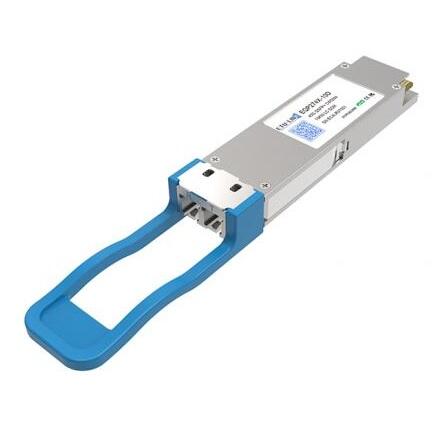

ETU-LINK EQ314X-3LCD10 40Gbps 1310nm QSFP+ module, 10KM, DDM LC

40Gbps 1310nm QSFP+ module, 10KM, DDM LC

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Data Rate: 40G
Wavelength: CWDM
Distance: 10KM
Connector: LC
Fiber Type: SM (single-mode)
DDM

Transmission data rate up to 11.2Gbps per channel
QSFP+ MSA compliant
Compliant to IEEE 802.3ba specification for 40GBASE-LR4 links
4 CWDM un-cooled DFB lasers, using ITU G.694.2 wavelength grid at 1270, 1290, 1310 and 1330nm
High Sensitivity PIN-TIA with optical DEMUX
Up to 10km reach over standard single mode fiber
Compliant with QDR/DDR Infiniband data rates
Hot pluggable electrical interface
Lower power consumption
Operating case temperature 0°C to +70°C
3.3V power supply
RoHS 6 compliant(lead free)
