Alta Labs ROUTE10 High-performance 10Gbps Router, Multi-WAN, Firewall, VPN

Designed for maximum performance, Route10 includes four autosensing Ethernet ports that support up to 2.5 Gbps Ethernet connections (10/100/1000/2500 Mbps).

• Four 2.5 Gbps RJ45 Ports
• Two Hardware-Accelerated 10 Gbps SFP+ Ports
• Power over Ethernet
• Quad-Core Qualcomm Network Accelerator
• Bluetooth Setup
• Static IP, DHCP and PPPoE WAN Support
• IKEv2 Remote Access
• VLAN and QoS Tagging on WAN Support
• Multiple VLAN and Subnet Support
• mDNS Forwarding
• Firewall Configuration
• NAT Configuration (Source and Destination, Port forwarding)
• UPnP Support
• Assignable Dual WAN - Ethernet and SFP+

Alta Labs is thrilled to announce the release of our groundbreaking high-performance 10 Gbps Router. Disruptively priced, it is the only 10 Gbps router in the market at this retail price point. Route10 completes the Alta Labs ecosystem, making it possible to build your entire network with Alta Labs products.

High Performance Connectivity

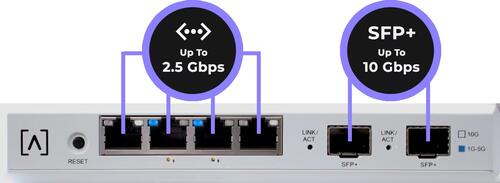

Designed for maximum performance, Route10 includes four auto sensing Ethernet ports that support up to 2.5 Gbps Ethernet connections (10/100/1000/2500 Mbps). Route10 also provides two SFP+ ports for high-capacity fiber or copper connections of 1 Gbps, 2.5 Gbps, 5 Gbps, or 10Gbps.

Device Specific Exceptions
For instances where specific devices should not have their content filtered, adhere to a schedule, or bypass a hotspot, admins can allow individual devices to bypass the filter, schedule, and/or hotspot settings.

Mobile App Support
Monitor and manage your networks from the convenience of your mobile device. The management interface is easily accessible via mobile app or web browser. Sign up for an Alta Labs account using just your name, email, and password or sign in using your Google or Apple account.

Bluetooth Setup
Bluetooth functionality is built into the Alta Labs Route10 router allowing for seamless setup using the Alta Networks mobile app.

Advanced Filtering - DPI Engine
Route10 has a powerful built-in Deep Packet Inspection (DPI) engine. Restrict access to websites, applications, or application types. Filter settings are easily applied in the Alta Labs Control lTM management interface. Select applications or application types in the Block Applications drop-down menu. Block websites by typing in their domain names in the Block Domains field.

Hardware Features
Four 2.5 Gbps RJ45 Ports, 2 with PoE+
Two 10 Gbps SFP+ Ports
Quad-Core Qualcomm Network Accelerator
Sleek, Compact Form Factor
Single Power Supply

Release Features
Static IP, DHCP and PPPoE WAN Support
VLAN and QoS Tagging on WAN Support
Multi-WAN
Traffic Shaping for Ultra-Low Latency, using CAKE
IPsec Site to Site and Mobile Client
Multiple VLAN and Subnet Support
Alta Networks Mobile App Support
DNS Repeater
Firewall Configuration
WireGuard
IDS/IPS
NAT Configuration (Source and Destination,Port forwarding)
UPnP Support
mDNS Forwarding
Dynamic DNS Client
Real-time Statistics Reporting
RADIUS Server (for IPsec VPN)
L2TP+IPSec Servers
LLDP
IPv6 Support
IGMP Snooping
IKEv2 Remote Access

Post Launch Features
Optional Rack Mount Accessory
OpenVPN
Static Routes
NAT Schedule
DPI

Dimensions : 180 x 110 x 29.8 mm
Weight : 0.46 kg
Enclosure Material : Top cover: polycarbonate Bottom cover: milled aluminum
Material Finish : Matte
Colour : White
Mount Material : Injection Molded Plastic

Network Interface :
(4) Autosensing 2500/1000/100/10 Mbps RJ45 Ports,
(2) 10 Gbps/1.25 Gbps SFP+ Ports
Data Rate : 37.5 Million Packets per second

LEDS :
PoE
Amber
RJ45
Amber (Left LED): 10/100 Mbps
Blue (Left LED): 1 Gbps
White (Right LED): 2.5 Gbps
SFP+
Blue: < 10 Gbps
White: 10 Gbps
Status
RGB/Multi-Color

Hardware
Processor
Quad-core Qualcomm 2.2 GHz
Button
Reset/Factory Reset
MAC Table Size
4k Stand Alone* (With additional switches more clients can be supported depending on the switch model)

Power
Power Supply
Universal AC, 100 - 240VAC 50-60Hz External
Maximum Input Power Consumption
70W
Idle Power Consumption
5W with no connections, 9W with all ports connected
POE Budget
40W
Per-Port PoE
(2) 802.3at POE+, PoE+ (54VDC, 0.6A Max)
PoE Ports x 2
Bluetooth Version : BLE
Total Bluetooth Power : 5 dBm EIRP
Bluetooth Gain : 3 dBi

Environmental
Mounting
Locking Wallmount, Desktop
Operating Temperature
-5 to 50° C (23 to 122° F)
With (1) 2W SFP+ Module: 45° C (113° F)
With (2) 2W SFP+ Modules: 40° C (104° F)
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
RJ45 Port Surge Protection
12kV for ESD - Contact, 25kV for ESD - Air

Software
VLAN : 802.1Q
Easily Scale from Home to SMB to Stadium
Seamless Per-Client Settings
VPN Server - Multiple, Hardware-Accelerated
Actual Total Throughput : 25 Gbps Combined Upload/Download
RADIUS Authentication
Deep-Packet Inspection
Intrusion Detection and Prevention Systems at 10Gbps
WAN Failover and Load-Balancing
