  • 10-Port Gigabit Ethernet Outdoor PoE Managed Switch

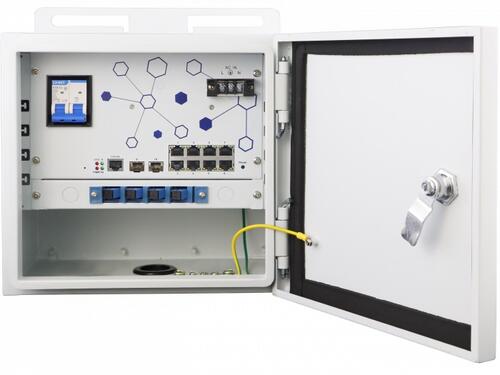

LevelOne OSW-1061 10-Port Gigabit Ethernet Outdoor PoE Managed Switch

10-Port Gigabit Ethernet Outdoor PoE Managed Switch

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

LevelOne is now offering customers two new outdoor switches. The OSW-1061 and OSW-1031 are IP55 rated and can withstand weather conditions and temperature fluctuations from -40° to 85°. This means they work as reliably on construction sites throughout the world as they do in wet rooms or nurseries.

Both outdoor switches have eight Gigabit ports with full PoE functionality and a total power budget of 115W, including DIP switch configuration for PoE autocheck and VLAN mode features. There are also two Gigabit SFP uplink ports for integrating optical networks for a total of 10 connections per unit.

These new switches are supplied in a lockable and weatherproof (IP55) enclosure for easy installation anywhere. Integrated overvoltage and ESD protection provide additional security.

The OSW-1031 is an unmanaged switch, ideal for standard network topologies. Fast data transfer, SFP uplink and the supply of several external PoE devices such as access points or video cameras are no problem for the device.

Additional Layer 2 functionality is provided by the OSW-1061. This device is ideal for scenarios that require more management options and applications where separate networks need to be supported, such as WLAN guest access. Settings are made via an intuitive web interface.

The OSW-1061 is a L2 Managed PoE Industrial Switch with 8 ports of Gigaibit RJ45 PoE and 2 ports of Gigabit SFP. This switch is offering full suite of L2 management features, better PoE functionality with 185W PoE power budget and usability.

This switch is designed to withstand outdoor or harsh environments, and can be mounted on a wall, pole, or cabinet to fit your space and layout.

  • 8-Port 10/100/1000 Ethernet PoE+
  • Gigabit SFP+ slots x 2
  • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • 6KV surge protection, 6KV contact / 8KV air ESD protection
  • Weatherproof IP55-rated Box housing
  • PoE Budget Max 185 W
