Ubiquiti U6-MESH-PRO Indoor/Outdoor WiFi 6 AP with 4 spatial streams, GbE Passthrough
Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
- WiFi 6
- 4 spatial streams
- 185 m² coverage with the integrated omnidirectional super antenna
- 350+ connected devices
- Powered using PoE

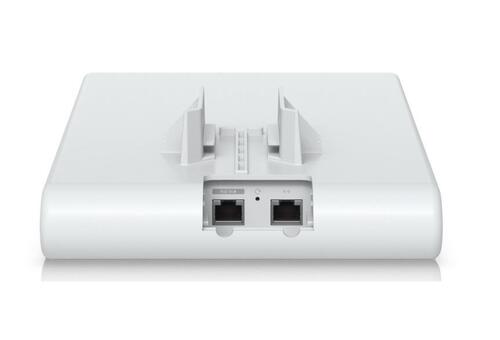

- GbE uplink with (1) GbE passthrough port
- Versatile wall and pole mounting
- Weatherproof (outdoor exposed)
Technical Specifications
|
Mechanical |
|
|
Dimensions |
343.2 x 181.2 x 60.2 mm |
|
Weight |
819 g |
|
Enclosure material |
UV-stabilised polycarbonate |
|
Mount material |
Aluminium alloy, steel |
|
Pole mount diameter |
1~2.5" on pipe outer diameter |
|
Weatherproofing |
IPX6 |
|
Hardware |
|
|
Networking interface |
(2) GbE RJ45 ports |
|
Management interface |
Ethernet |
|
Power method |
PoE |
|
Power supply |
UniFi PoE switch |
|
Supported voltage range |
42.5—57V DC |
|
Max. power consumption |
9W |
|
Max. TX power |
|
|
MIMO |
|
|
Throughput rate |
|
|
Antenna gain |
|
|
LEDs |
White/blue |
|
Button |
Factory reset |
|
Mounting |
Wall, pole (Included) |
|
Ambient operating temperature |
-30 to 60° C (-22 to 140° F) |
|
Ambient operating humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
Software |
|
|
WiFi standards |
802.11a/b/g/n/ac/ax |
|
Wireless security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
|
BSSID |
8 per radio |
|
VLAN |
802.1Q |
|
Advanced QoS |
Per-user rate limiting |
|
Guest traffic isolation |
Supported |
|
Concurrent clients |
350+ |
|
Supported Data Rates |
|
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11b |
1, 2, 5.5, 11 Mbps |
|
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11n (WiFi 4) |
6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40) |
|
802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
|
802.11ax (WiFi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
|
Application Requirements |
|
|
UniFi Network |
Version 8.1.127 and later |
