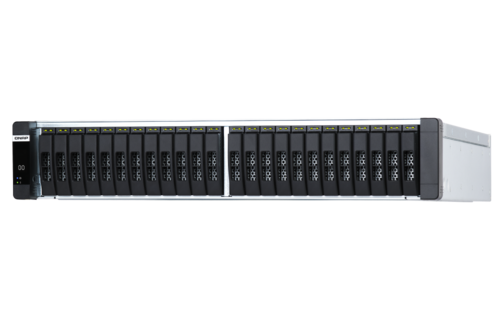

QNAP ES2486DC-2142IT-96G 24-Bay Enterprise ZFS NAS, SAS 12G/6G, Xeon D-2142IT 1.9GHz, 96GB RAM
24-Bay Enterprise ZFS NAS
- 2.5 inch SAS 12G/6G
- Xeon D-2142IT 1.9GHz, 96GB RAM

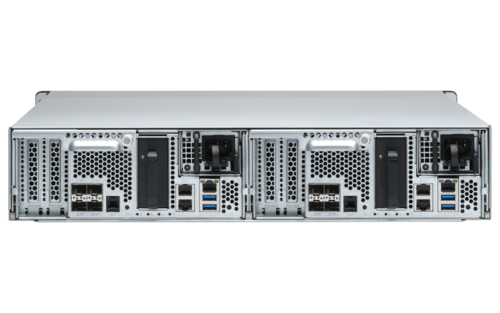

- 7-LAN (4 SFP+ / 3 RJ45 for Each Controller)
- Redundant power supply
- Rail Kit
Powerful and cost-efficient Intel® Xeon® D based Enterprise ZFS NAS, optimized for inline deduplication and all-flash applications
The ES2486dc Enterprise ZFS NAS is QNAP’s first high-availability NAS with all-flash arrays and dual active controllers. Powered by an Intel® Xeon® D-2142IT 8 cores/16 threads processor, the ES2486dc supports up to 24 x 2.5-inch SAS 12Gbps SSDs and provides excellent I/O throughputs. Random write performance for all-flash arrays is further driven by the flash-optimized QES 2.1.1 operating system that comes pre-installed on the ES2486dc. The QES uses ZFS to support logical volume management; block-based inline data deduplication and inline compression reduce I/O and SSD storage consumption, which significantly extends SSD lifespan with higher price-performance ratio for all-flash storage arrays. Coupled with near-limitless snapshots and SnapSync for data protection, the QES-based ES2486dc fulfills demanding business applications, such as mission-critical file servers, virtualization servers, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup and recovery.

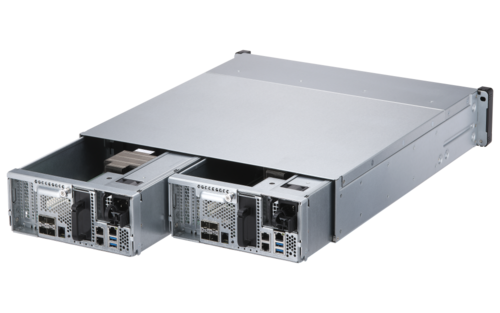

Dual active-active controllers
Intel® Xeon® D dual active-active controllers provide superb uptime and redundancy to ensure high availability (HA).
Reliable & High-performance
Battery-protected DRAM write to cache data protection and flash read acceleration provides industry-leading random access performance.
Flexible PCIe expansion
PCIe expandability allows for 10GbE/25GbE adapters to increase application performance.
10GbE connectivity
Four 10GbE SFP+ ports accelerate large file sharing and intensive data transfer from virtualization or datacenter.
Data protection & recovery
Near-limitless snapshots and SnapSync for snapshot remote backup assist businesses to resume essential services in the shortest time.
Virtualisation applications
Supports VMware® vSphere® 6.5, Windows Server® 2019 and Citrix® XenServer® 7.0 for storage virtualization. Compatible with OpenStack® cloud environments.
Active-Active high availability with optimal storage efficiency
In Active-Active storage system architecture, both controllers can provide a comprehensive range of services, which is different from the Active-Standby architecture of single-controller systems. An advantage of Active-Active architecture is the lack of idle computing resources. To leverage the strengths of the ES2486dc Active-Active controller architecture, QNAP recommends creating multiple storage pools and distributing ownership between both controllers to enable simultaneous output from both controllers for improved load balancing.
CPU |
Intel® Xeon® D-2142IT 8-core 1.90 GHz processor, up to 3.0 GHz |
CPU Architecture |
64-bit x86 |
Floating Point Unit |
|
Encryption Engine |
(AES-NI) |
System Memory |
48 GB RDIMM DDR4 ECC (4 x 4 GB+4 x 8GB) per controller |
Maximum Memory |
512 GB (8 x 64GB) |
Memory Slot |
8 x R-DIMM/LR-DIMM DDR4 IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory. |
Flash Memory |
4GB (Dual boot OS protection) |
Drive Bay |
24 x 2.5-inch SAS 12Gb/s, backward-compatible to SAS 6Gb/s |
Drive Compatibility |
2.5-inch bays: 1. When installing SATA HDD/SSD, QDA-SA3 adapter is required. |

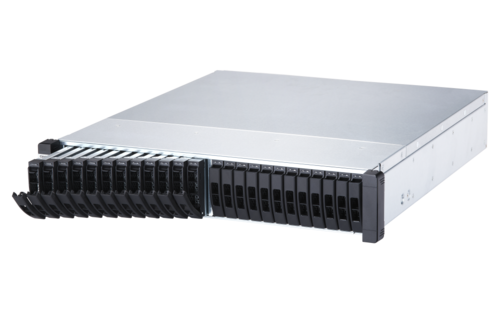

Hot-swappable |
|
SSD Cache Acceleration Support |
|
Cache for Copy To Flash (C2F) |
1 per each controller (64GB M.2 SSD) |
Gigabit Ethernet Port (RJ45) |
3 for each controller (one for remote management) |
10 Gigabit Ethernet Port |
4 x 10GbE SFP+ for each controller |
Wake on LAN (WOL) |
|
Jumbo Frame |
|
PCIe Slot |
2 per controller Card dimensions for PCIe slot 1~Slot 2:215 x 68.9 x 18.76 mm / 8.46 x 2.71 x 0.74 inches. |
USB 3.2 Gen 1 port |
2 per each controller Note: The USB ports are for engineering purpose only. No external devices such as storage drives or UPS are supported. |
Form Factor |
2U Rackmount |
LED Indicators |
System Power LED (Green): on/off |
Buttons |
Power, Reset |
Dimensions (HxWxD) |
88.3 × 446.2 × 504.1 mm |
Weight (Net) |
23.4 kg |
Weight (Gross) |
27.4 kg |
Operating Temperature |
0 - 40 °C (32°F - 104°F) |
Storage Temperature |
-20 - 70°C (-4°F - 158°F) |
Relative Humidity |
5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
Power Supply Unit |
Redundant/ Hot Swap Power Vin:90~264VAC;700W |
Power Consumption: Operating Mode, Typical |
579.59 W Tested with drives fully populated. |
Fan |
Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3) |
System Warning |
Buzzer |
Standard Warranty |
5 |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory |
10000 |
Safety Standard |
FCC Class A (USA only) |
