LevelOne IGP-0310 3-Port Industrial Gigabit POE Switch, 802.3at PoE+ in and out, 1x SFP

  • One RJ45 Gigabit Ethernet port for powering via PoE
  • One RJ45 Gigabit Ethernet port for providing PoE
  • One SFP port for inserting SFP modules

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

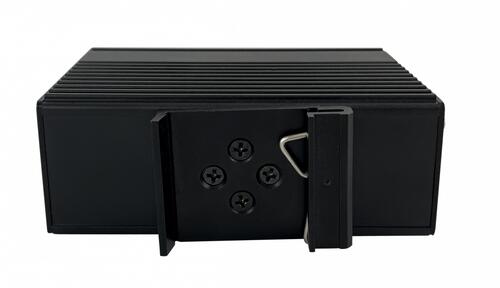

  • DIN-rail, wall or desktop mounting
  • IP30 metal case
  • 6KV surge protection level on each port
  • ESD and surge protection
  • Data rate : Gigabit Ethernet
  • PoE Power Budget : Total 30W
  • Fanless
  • Industrial Grade

Note. This is powered via PoE

The LevelOne IGP-0310 Industry Ethernet Switch provides 2 PoE ports 10/100/1000Base plus 1 port SFP to enable high speed network at mission-critical environment.

With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity.

Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers.

This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE802.3af/at  PoE standard at maximum 30W. Also, it is compatible with IEEE802.3 af/at standard PD devices.

Port Configuration
Gigabit RJ45 x 2
Gigabit SFP x 1 (100/1000 Mbps)
802.3af/at PoE x 1

Physical Specifications
Dimensions (W x D x H) 101 x 65 x 36 mm
Product weight (kg) 0.35

System specifications
Backplane (Gbps) 6
Indicators Uplink 3: Green LEDs indicate Link/Act
Downlink 1~2: On RJ45 green LEDs indicate Link/Act
Yellow LEDs indicate PoE
Mount DIN rail mount
Packet buffer 1M
Pin assignment and polarity 1/2 (+), 3/6 (-)
Power consumption <5W
Power supply PoE
Standards IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 10Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-X Gigabit Ethernet
IEEE802.3x Flow Control and Back Pressure,
IEEE802.3af for POE
IEEE802.3at for POE+

Approval and Compliance CE/FCC
Operating humidity 10% RH ~ 90% RH
Operating temperature -40°C ~ 75°C
Storage humidity 0% RH ~ 95% RH
Storage temperature -40°C ~ 85°C
