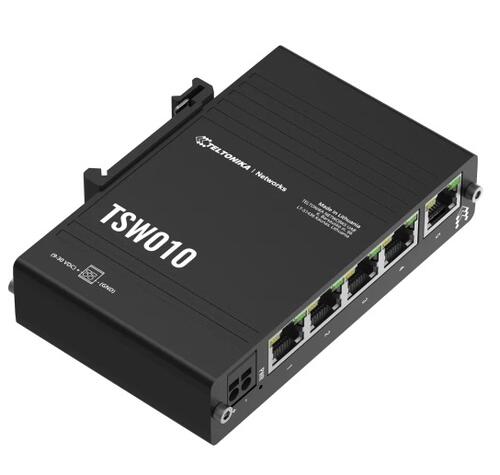

Teltonika TSW010 5-Port Ethernet Switch, integrated DIN mounting
TSW010 offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
PLUG AND PLAY
No additional configuration needed
MOUNTING

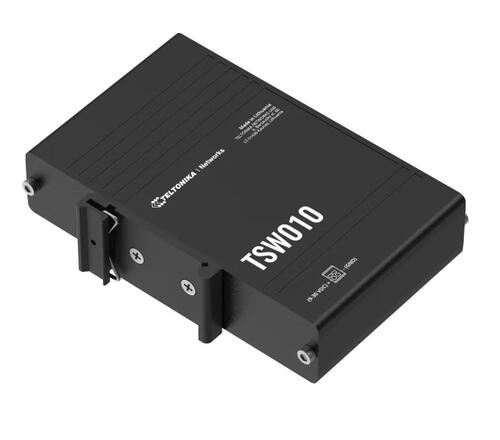

Integrated DIN rail bracket and surface mounting options
INDUSTRIAL DESIGN
Anodized aluminum housing and panels
ETHERNET
5 x Ethernet ports with speeds of up to 100 Mbps
|
Ports |
5 x RJ45 ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover |
|
IEEE 802.3 series standards |
802.3i, 802.3u, 802.3x, 802.3az |
|
Bandwidth (Non-blocking) |
1 Gbps |
|
MAC address table size |
2K entries |
|
Jumbo frame support |
2048 bytes |
|
Power Connector |
2-pin industrial DC power socket |
|
Input voltage range |
9 – 30 VDC (Power Supply Not Included) |
|
Input PoE (passive) |
ETH1 port Mode B, 9 - 30 VDC in |
|
Power consumption |
Idle: 0.3 W / Max: 0.9 W |
|
Status LEDs |
1 x Power LED, 10 x ETH status LEDs |
|
Casing material |
Aluminium housing |
|
Dimensions (W x H x D) |
113.1 x 27.4 x 80.5 mm |
|
Weight |
146.5 g |
|
Mounting options |
DIN rail or wall mounting (additional kit needed), flat surface placement |
|
Operating temperature |
-40 °C to 75 °C |
|
Operating humidity |
10% to 90% non-condensing |
|
Ingress Protection Rating |
IP30 |
|
Regulatory |
CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM |
|
Safety Standards |
EN IEC 62368-1:2020+A11:2020 |
|
