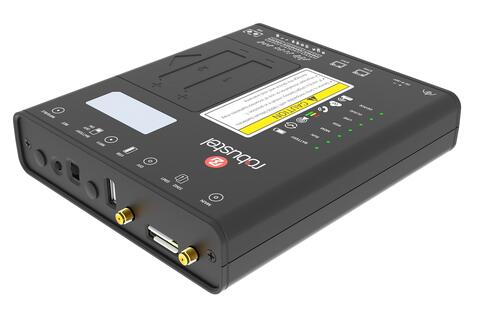

Robustel B126003 LTE Router with built-in battery, FXS Port, Voice over LTE

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

( EV8100 )
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

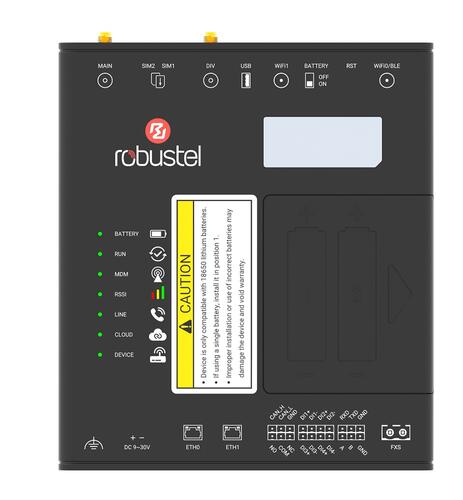

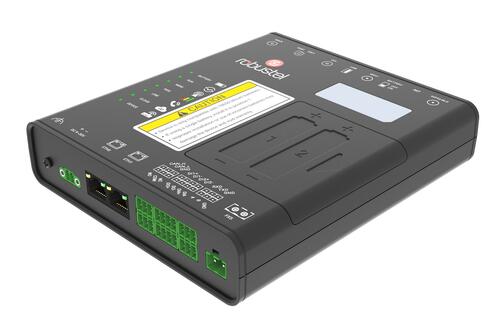

Robustel’s EV8100 is an advanced LTE gateway that supports VolP and VoLTE.

Developed primarily as an elevator voice gateway to enhance safety and reliability in vertical transportation systems, this can also be used in other applications such as PSTN failover for voice systems, alarms, intercoms, etc.

As an elevator gateway, it enables seamless communication between a cellular network and the elevator’s intercom system. This next-generation device offers multiple interfaces and allows for seamless remote monitoring and management of the elevator’s communication system, making it easy to address any issues or malfunctions quickly and efficiently.

With its advanced features and robust design, the EV8100 is a reliable and essential safety solution for any modern building.

The EV8100 supports Docker for easy deployment of applications and benefits from ‘RobustOS Pro’ – Robustel’s latest Linux Debian bullseye based router OS with enhanced cybersecurity, advanced GUl and a myriad of software features including VPNs, Smart Roaming, SMS remote control and more.

RCMS is Robustel’s free router monitoring service that is fully compatible with the EV8100. lt allows customers to see a location overview of their routers quickly and simply on a map. Features such as data usage, signal strength, current network and much more can then be viewed on a per router basisOver-the-air updates are supported for Firmware, router configuration and Apps serving as essential “insurance” if anything was not quite right during deployment.

You can try Robustel’s free router management platform by signing up here: https://rcms-cloud.robustel.net

Note. This model "B126003 (EV8100-A-4L-A34AU)" has no WiFi or Bluetooth. For those features, order the "B126004 (EV8100-B-4L-A34AU)"

  • VolP and VoLTE supported, VoLTE as a backup voice communication line
  • Backup battery inside, complies with EN 81-28 and AS1735 standards
  • Highly stable 4G/3G/2G cellular connectivity with global band coverage
  • High performance compute engine with 8 GB eMMCFlash for running complex customer applications
  • ‘Docker’ containerization supported
  • 1 x RS232, 1 x RS485 +1 x CAN for connection to industrial/legacy devices
  • 4 x DI & 1 x Relay for simple monitoring and control
  • Dual SIM card slots for redundant communications
  • 802.11ac Wi-Fi (optional, with seperate order SKU) supporting AP and Cient modes
  • Bluetooth (optional, with seperate order SKU), Bluetooth 5.2 compliant
  • Supports C, C++, Java, Python, Node.js etc. for users to develop their own applications
  • More than 50,000 applications from Debian repository currently available
  • Wireguard/IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN+ more VPN options
  • Supports RCMS- Robustel’s router/gateway management platform for effective management of large estates of devices

Frequency Bands
4G: LTE-FDD:B1/2/3/4/5/7/8/28
LTE-TDD:B40
3G: WCDMA: B1/2/4/5/8
2G: GSM/EDGE:B2/3/5/8

Hardware System

CPU

i.MX 6ULL, 792MHz

RAM

512 MB DDR3

Flash

8 GB eMMC



Cellular Interface

Number of antennas

2

Connector

SMA-K

SIM

2 x Mini SIM (2FF)



FXS

Number of ports

1

Connector

2-pin 5.08mm terminal block

Signal

TIP, RING



Ethernet Interface

Ports

2 x RJ45, 10/100Mbps, LAN or WAN, 1 KV magnet isolation protection



Serial Interface

Type

1 x RS232, 1 x RS485 +1 x CAN

Connector

3.5 mm terminal block

ESD protection

8 KV Air, 4 KV Contact

Baud rate

300 bps to 115200 bps for RS232/RS485,

up to 1Mbps for CAN

Signal

RS232: TXD, RXD, GND

RS485: A, B, GND

CAN: CAN_H,CAN_ L, GND



DI/Relay Interface

Number of ports

4 x DI(Wet contact) + 1 x Relay(Dry contact)

Connector

3.5 mm terminal block

Absolute maximum VDC

+ 30V DC(DI), +40VDC(Relay)

Absolute maximum ADC

100 mA(DI), 300mA(Relay)

Signal definition

DI1+, DI1-, DI2+, DI2-, DI3+, DI3-, DI4+, DI4-

NC, NO, COM





WiFi Interface (Optional, with seperate order SKU)

Number of antennas

2

Connector

RP-SMA-K

Standards

802.11a/b/g/n/ac, 2 x 2 MIMO, supports AP and Client modes

Frequency bands

2.412 – 2.484 GHz (2.4 GHz ISM band)

5.18 – 5.825 GHz (5 GHz ISM band)

Security

WEP 64-bit and 128-bit encryption with H/W TKIP processing

WPA/WPA2 (Wi-Fi Protected Access)

AES-CCMP hardware implementation as part of 802.11i security standard



Bluetooth Interface (Optional, with seperate order SKU)

Number of antennas

1 (Multiplexing Wi-Fi antenna)

Connector

RP-SMA-K

Standards

Bluetooth 2.1 and 3.0+Enhanced Data Rate (EDR) + Bluetooth 5.2



Others

Reset button

1 x RST

Switch

1 x Battery Switch

USB

1 x USB 2.0 (host), Type A, 5V, 500mA

LED indicators

1 x Battery, 1 x RUN, 1 x Line, 1 x MDM

1 x RSSI, 1 x Cloud, 1 x Device

Watchdog

External



VOIP

Protocols

SIP (RFC3261) over UDP, SIPs, SRTP

DTMF

In-band, RFC2976, RFC 2833



Software (Basic features of RobustOS Pro)

Network protocols

PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP,

SMTP, Telnet, HTTPs, DNS, ARP, VLAN, SSH2, DDNS, etc.

VPN tunnel

IPsec, OpenVPN, GRE

Firewall

DMZ, anti-DoS, Filtering (lP/Domain name/MAC address), Port Mapping, Access Control

Remote management

Web, CLI SMS

Serial port

Transparent, TCP Client/Server, UDP, Modbus RTU Gateway

Others

Smart Reboot, Data Guard, Smart Roaming



SDK

Operating System

RobustOS Pro (Based on Debian 11(bullseye))

Supported programming

languages

C, C++, Python, Java, Node.js, etc.

(for users to develop own applications)

Debian Repository available

Flash available for SDK

6GB

RAM available for SDK

256 MB



App Center (Available Apps for RobustOS Pro)

Apps*

L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS,

Dynamic route, Captive Portal, Modbus Master, etc.

*Request on demand. For more Apps please visit www.robustel.com



Power Supply and Consumption

Connector

2-pin 3.5 mm terminal block with lock

Input voltage

9~30V DC

Power consumption

ldle: 4W

Data link: 25W (peak)



Physical Characteristics

Ingress protection

IP30

Housing & Weight

Plastic, 470g

Dimensions

170 * 150 * 35 mm

Installations

Desktop, wall mounting and 35 mm DIN rail mounting

Magnetic optional, the suction iron is a detachable part

Operating temperature

-20~+60?(Without battery)

0 ~ + 45 °C(With battery)

Note: The battery can be charged at 0~35°C

Storage temperature

-40 ~ + 85 °C(Without battery)

-20 ~ + 35 °C(With battery for long term)

Relative humidity

5~95% RH



Regulatory and Type Approvals (*In progress)

Environmental

RoHS2.0*

EMI

EN 55032 Conducted Emission class B*

EN 55032 Radiated Emission class B*

EMS

IEC 61000-4-2 (ESD) Level 2*

IEC 61000-4-3 (RS) Level 3*

IEC 61000-4-4 (EFT) Level 2*

IEC 61000-4-5 (Surge) Level 2*

IEC 61000-4-6 (CS) Level 2*





EV8100-A-4L-A34AU
