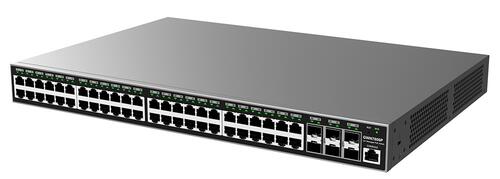

Grandstream GWN7806P 54-Port Gigabit PoE Managed Ethernet Switch, 48x GigE, 6x SFP+

Enterprise Layer 2+ Managed PoE Network Switch, 48 x GigE, 6 x SFP+.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:



The Grandstream GWN7806P is layer 2+ stackable managed network switch that allows small-to-medium enterprises to build scalable, secure, high performance and smart business networks that are fully manageable.

It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.

The GWN7806P provides smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. GWN7806P is easy to deploy and manage, including managed by the local Web user interface of the GWN7806P switch and CLI, the command-line interface. The switch is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. The GWN7806P is the best value enterprise-grade managed switch for small-to-medium businesses.

  • 48 Gigabit Ethernet ports and 6 Gigabit SFP+ ports
  • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
  • Supports deployment in IPv6 and IPv4 networks
  • Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
  • ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
  • Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
  • Built-in QoS allows for prioritization of network traffic
  • Supports stacking for easy management of up to 16 switches in one interface while creating redundant backup between multiple devices

Network Protocol

IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x

Gigabit Ports

48

SFP+ Ports

6

Note: Support DAC cable, and must be ≤ 5m

Maximum no. of Supported Modules

SM-10G: 6

MM-10G: 6

RJ45-10G: 3

Note: RJ45-10G modules must be interval inserted

Console

1

# of PoE Ports

48

Integrated Power Supply

470W

Maximum Output Power Per PoE Port

30W

Max Total PoE Output Power

400W

PoE Standards

IEEE 802.3af/at

Auxiliary Ports

1x Reset Pinhole

Forwarding Mode

Store-and-forward

Total non-blocking throughput

108Gbps

Switching Capability

216Gbps

Forwarding Rate

160.704Mpps

Packet Buffer

16Mb

Switching



32K static, dynamic and filtering MAC addresses

4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN

VLAN virtual interface

GVRP (pending)

27 link aggregation

Spanning tree, 64 instances for STP/RSTP/MSTP



Routing

Static routing

Multicast



IGMP Snooping

MLD Snooping

MVR (pending)



QoS/ACL



Port priority

Priority mapping

Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ

Traffic shaping

Rate limit

4K ACL for Ethernet, IPv4 and IPv6



DHCP

DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43

Maintenance

CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test

Security



User hierarchical management and password protection, HTTPS, SSH, Telnet

802.1X authentication

AAA authentication including RADIUS, TACACS+

Storm control

Port isolation, port security, sticky MAC

Filtering MAC address

IP source guard, DoS attack prevention, ARP inspection

DHCP Snooping

Loop protection including BPDU protection, root protection(pending) and loopback protection(pending)

Kensington Security Slot (Kensington Lock) support



Mounting

Desktop, Rackmount(rack-mounting kits included)

LEDs

1x tri-colour LED for device tracking and status indication54x green-colour LEDs for data transferring48x yellow-colour LEDs for PoE powered (GWN7806P)

Fans

3

Environmental

Operation: 0°C to 45°C, humidity: 10% to 90% RH(Non-condensing) Storage: -10°C to 60°C, humidity:10% to 90% RH(Non-condensing)

Dimensions

440mm(L)x301mm(W)x44mm(H)

Unit Weight

5.1Kg

Package Content

Switch, 1x 1.2m(10A) AC Cable, 1x 25cm Ground Cable, 4x Rubber Footpads, 2x Rack-Mounting Kits, 8x Screws(PM 3*6), 1x Power Cord Anti-Trip, 1x Quick Installation Guide, 1x Console Cable(Optional)

Network Protocol

IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x

Gigabit Ports

48

SFP+ Ports

6

Note: Support DAC cable, and must be ≤ 5m

Maximum no. of Supported Modules

SM-10G: 6

MM-10G: 6

RJ45-10G: 3

Note: RJ45-10G modules must be interval inserted

Console

1

# of PoE Ports

48

Integrated Power Supply

470W

Maximum Output Power Per PoE Port

30W

Max Total PoE Output Power

400W

PoE Standards

IEEE 802.3af/at

Auxiliary Ports

1x Reset Pinhole

Forwarding Mode

Store-and-forward

Total non-blocking throughput

108Gbps

Switching Capability

216Gbps

Forwarding Rate

160.704Mpps

Packet Buffer

16Mb

Switching



32K static, dynamic and filtering MAC addresses

4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN

VLAN virtual interface

GVRP (pending)

27 link aggregation

Spanning tree, 64 instances for STP/RSTP/MSTP



Routing

Static routing

Multicast



IGMP Snooping

MLD Snooping

MVR (pending)



QoS/ACL



Port priority

Priority mapping

Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ

Traffic shaping

Rate limit

4K ACL for Ethernet, IPv4 and IPv6



DHCP

DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43

Maintenance

CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test

Security



User hierarchical management and password protection, HTTPS, SSH, Telnet

802.1X authentication

AAA authentication including RADIUS, TACACS+

Storm control

Port isolation, port security, sticky MAC

Filtering MAC address

IP source guard, DoS attack prevention, ARP inspection

DHCP Snooping

Loop protection including BPDU protection, root protection(pending) and loopback protection(pending)

Kensington Security Slot (Kensington Lock) support



Mounting

Desktop, Rackmount(rack-mounting kits included)

LEDs

1x tri-colour LED for device tracking and status indication54x green-colour LEDs for data transferring48x yellow-colour LEDs for PoE powered (GWN7806P)

Fan

3

Environmental

Operation: 0°C to 45°C, humidity: 10% to 90% RH(Non-condensing) Storage: -10°C to 60°C, humidity:10% to 90% RH(Non-condensing)

Dimensions

440mm(L)x301mm(W)x44mm(H)

Unit Weight

5.1Kg

Package Content

Switch, 1x 1.2m(10A) AC Cable, 1x 25cm Ground Cable, 4x Rubber Footpads, 2x Rack-Mounting Kits, 8x Screws(PM 3*6), 1x Power Cord Anti-Trip, 1x Quick Installation Guide, 1x Console Cable(Optional)
