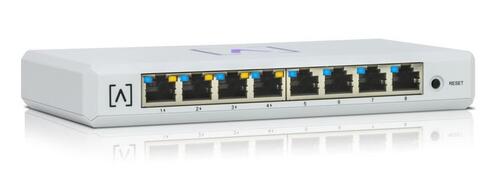

Alta Labs S8-POE 8-Port Gigabit Managed PoE Switch, 4x PoE+ Ports, 60W

  • Ethernet switch with 8x 10/100/1000 ports, 4 of which support PoE+
  • Choose from free cloud management, local hardware controller or BYOD local controller license

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

. Cloud or Locally Managed
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

8-Port Managed Enterprise Ethernet Switch, 60W PoE

Power Over Ethernet

SFP High Performance Connectivity

• Bluetooth Setup

• Mobile App

• Scalable Cloud-Based Management

• VLAN Stacking

• Egress and Ingress Rate Limiting

• IGMP Snooping*

• 802.1X Authentication*

• Network Loop Detection*

• Customizable Dashboard

• Status Snapshots

• Device Cards

• Site Manager

• Mounting Flexibility

• More Features to Come with Automatic Firmware Updates



Alta Labs offers three PoE+ Gigabit switches, designed to meet various needs ranging from an enterprise environment to the small office/ home office.

The S24-PoE is a rack-mountable switch with twenty-four 10/100/1000 ports, sixteen of which support PoE+. The S24-PoE includes two SFP+ ports.

The S16-PoE is a rack-mountable switch with sixteen 10/100/1000 ports, eight of which support PoE+. The S16-PoE includes two SFP ports.

The S8-PoE is a compact switch with eight 10/100/1000 ports, four of which support PoE+. It can be placed on a desktop or mounted on a wall.



S8-PoE

S16-PoE

S24-PoE

Total Ports

8

16

24

PoE+ Ports

4

8

16

PoE Budget

60

120

240



SFP/SFP+



Up to 1Gbps

Up to 10Gbps

Bluetooth

Yes



Yes



Yes



All of the Alta Labs switches include Bluetooth functionality for seamless device setup.

Power Over Ethernet

The Alta Labs switches feature PoE+ connectivity with a number of ports capable of providing up to 30 Watts of power per port. The switches support the 802.3at PoE+ standard and are backwards compatible with the 802.3af PoE standard. The S8-PoE offers four PoE+ ports with a PoE budget of 60 Watts. The S16-PoE offers eight PoE+ ports with a PoE budget of up to 120 Watts. The S24-PoE offers sixteen PoE+ ports with a PoE budget of up to 240 Watts. Power your Alta Labs Access Points and other devices that support 802.3at or 802.3af standards.

SFP/SFP+ High Performance Connectivity

The S24-PoE switch provides two SFP+ ports for high-capacity fiber or copper connections of 1 Gbps, 2.5 Gbps, 5 Gbps, or 10 Gbps. The S16-PoE switch provides two SFP ports for fiber or copper connections up to 1 Gbps

Bluetooth Setup

The Alta Labs switches include Bluetooth functionality allowing for seamless setup using the Alta Labs mobile app.

Mobile App

Monitor and manage your networks from the convenience of your mobile device. The management interface is easily accessible via mobile app or web browser. Sign up for an Alta Labs account using just your name, email, and password or use Google Authentication.

Scalable Cloud-Based Management

Alta Labs provides an intuitive and easy-to-use cloud-based management interface for Alta Labs access points and switches. Designed for optimum scalability using a high-availability architecture for the ultimate in convenience and worldwide accessibility. Built on a worldwide content delivery network to optimize response and latency, our global cloud infrastructure ensures geographically optimized connectivity through our redundant network. Deploy and manage multiple sites quickly and easily. Add, delete, or rename sites instantly. Toggle between sites from a site selection drop-down. Each site contains its own data set.

VLAN Stacking

As one of their advanced features, the S24-PoE supports VLAN stacking, or Q-in-Q, to provide your customers with their own subsets of VLANs.

Egress and Ingress Rate Limiting

These switches offer egress and ingress rate limiting. This allows inbound and outbound traffic to be limited to a portion of the available bandwidth per connection. For example, a hotel may want to provide guests with free 5 Mbps internet download (egress) connections but require guests pay an extra fee for 100+ Mbps speeds. The upload (ingress) speeds from the guests devices can also be limited.

Alta Labs Cloud Management Platform

The Alta Labs Cloud Management Platform provides many features that can be utilized on your Alta Labs Switches.

Customizable Dashboard

Customize your dashboard with the information you want to see: IP address, Load, number of devices, MAC address, firmware version, network colour assignment, and real-time status details. Details are sortable by column.

Status Snapshots

View upload and download throughput with a visual timeline on the dashboard for each device displayed along with the number of connected devices, average processor load, channel load, and average connected devices. Select a snapshot of the last minute, last hour, last two days, or last two months.

Device Cards

Easily view connection details and configure your ports by clicking the device icon.

Site Manager

The Alta Site Manager provides an overview of all sites, displays the number of devices for each site, and shows when updates are needed. New sites can be added and current sites can be duplicated or removed. Use the search option to look for a specific site.

Mounting Flexibility
The S24 PoE and S16 PoE include rack ears that can be connected to the switches for rack installation or mounting on a wall.
The rack ears are designed to keep the cooling vents exposed.
These switches also include the Rackstud™ DUO toolless rackmount system.

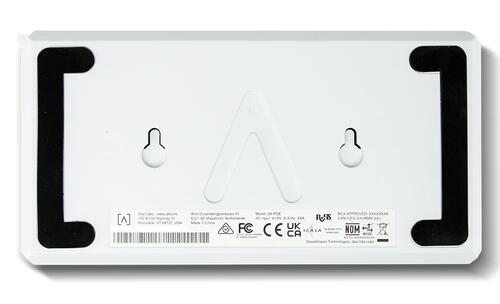

The S8 PoE switch has padding for desktop placement and notches for mounting on the included wall mount bracket.

Specifications S8-POE

Dimensions

25.7 x 91 x 180 mm

Weight

.38 kg

Material Type

Injection Moulded Plastic

Material Finish

Matte

Color

White

Ports



Interface ports

(8) 10/100/1000 Mbps

SFP/SFP+

None

Switching Capacity

16 Gbps

Non-blocking Throughput

8 Gbps

Forwarding Rate

11.9 Gbps

PoE Budget/Max

60 Watts

PoE Supply

30 Watts per port

Per Port PoE

(4) 802.3at PoE+

Non-PoE Ports

4

LEDS



PoE

Orange

Network

Orange: 10/100 Mbps, Blue: 1000Mbps

SFP/SFP+

None

HARDWARE



Packet Buffer

4.1 Mbit

Mac Table Size

8 K

Energy Efficient Ethernet

Yes

Management

Factory reset button

Bluetooth

Yes, Setup

POWER



Max Power Consumption w/o PoE

8 Watts

Max Power Consumption Full PoE

68 Watts

Output

PoE+, 54VDC, 0.6A Max.

Power Supply

Universal AC, 100 - 240VAC 50-60Hz External

RJ45 Port Surge Protection

12kV for ESD - contact, 25kV for ESD - Air

ENVIRONMENTAL



Mounting

Locking Wall mount

Operating Temperature

-5 to 50° C

Operating Humidity

10 to 90% Noncondensing

IP Rating

None

EMI Rating

EMI Class-B with 3dB margin

Cooling Fan

No (Fanless cooling)

Certifications

CE, FCC, IC
