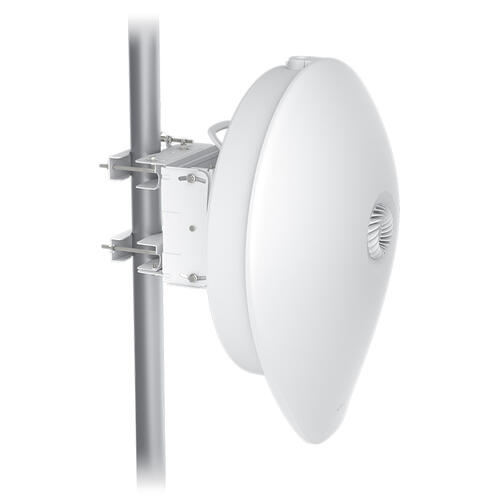

Ubiquiti AF60-XR UISP airFiber 60 XR 60GHz Long Distance Bridge Radio, with 5GHz Failover
No compromise. Just performance.
- 15+ km link range (with 5GHz backup)
- 5.4 Gbps max. throughput
- 5 GHz 800+ Mbps weather-resilient backup radio
- (1) GbE and (1) 10G SFP+ port
- Precision alignment mount
- Integrated GPS & Bluetooth
Long-range 60GHz wireless bridge with multi-gig performance and rock-solid reliability.
Looking to push wireless connectivity to the edge — literally? The AF60-XR is Ubiquiti’s flagship 60?GHz radio, purpose-built for high-capacity point-to-point links over impressive distances.
Why choose the AF60-XR?
- Ultra-Fast Speeds – Get up to 6+ Gbps throughput using 60?GHz mmWave + 5?GHz backup radio, perfect for bandwidth-heavy applications.
- Extended Range – Go the distance with line-of-sight links up to 15+ km thanks to its high-gain, precision-engineered parabolic antenna.
- Built-In Precision Alignment Tool – Take the guesswork out of installation with real-time signal feedback and built-in GPS for rock-solid aiming.
- Redundancy-Ready – Built-in 5GHz failover radio ensures continuous connectivity even in challenging weather conditions.
- Low Latency – Fiber-like performance without the trenching. Ideal for voice, video, surveillance backhaul, or mission-critical enterprise links.
- Clean, Professional Deployment – Weather-resistant, sleek form factor with a rugged build designed for long-term outdoor use.
Whether you’re bridging buildings across a city, extending coverage to a remote facility, or deploying high-speed broadband in hard-to-reach places — the AF60-XR delivers.
Technical Specifications
Mechanical |
|
Dimensions |
779 x 664 x 383 mm (30.7 x 26.1 x 15.1") |
Weight |
Without mount: 8.6 kg (19 lb) |
Enclosure materials |
UV stabilized polycarbonate, steel |
Mount material |
Galvanized steel |
Mounting |
Precision alignment kit (included) |
Wind loading |
422 N at 200 km/h (94.86 lbf at 125 mph) |
Weatherproofing |
IPX6 |
Hardware |
|
Processor |
Quad-core ARM® Cortex®-A53 at 1.4 GHz |
Memory |
DDR3L1 GB |
Networking interface |
(1) GbE RJ45 port |
Max. power consumption |
24W |
Power method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
Power supply |
48V DC, 0.65A gigabit PoE adapter (included) |
Supported voltage range |
44–54V DC |
GPS |
Yes |
RF connections |
Internal |
Button |
Factory reset |
Operating temperature |
-40 to 55° C (-40 to 131° F) |
Operating humidity |
5 to 95% noncondensing |
Certifications |
FCC, IC, CE |
Software |
|
Operating mode |
PtP only |
Ubiquiti specific features |
Integrated 60 GHz radio, discovery protocol, Wave technology |
Services |
UISP, ping watchdog, NTP client, device discovery |
Tools |
Antenna alignment, discovery utility, ping, trace route, speed test |
Network |
Bridge mode |
Management application |
UISP web: Version 1.4.3 and later |
System |
|
Max. throughput |
2.7 Gbps |
Max. range |
15+ km |
Encryption |
WPA2-PSK (AES) |
RF |
|
Operating frequency* |
57–71 Ghz |
Channel bandwidth |
2160, 1080 MHz |
Operating channels* |
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz |
Management radio |
2400–2483.5 MHz |
Modulation |
16QAM, BPSK, QPSK |
Polarization |
Vertically linear |
Beamwidth |
Azimuth: 3 dB 1.4° |
Electrical downtilt |
0° |
Back-Up RF |
|
Operating frequency* |
|
Channel bandwidth |
20, 40, 80 MHz |
Modulation |
BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6) |
Antenna gain |
26 dBi |
Polarization |
Dual-linear |
Beamwidth |
Azimuth: 3 dB 5° |
Cross-pol isolation |
14 dB |
Electrical down-tilt |
0° |
LEDs |
|
Power |
Flashing white: bootup in progress |
Ethernet |
Flashing blue: Ethernet activity |
GPS |
Blue: receiving at least (4) GPS satellite signals |
Link |
Blue: 5GHz link |
