• Routers
  • UISP Console Gateway Router, Integrated Switch, Multi-gigabit Ethernet

Ubiquiti UISP-CONSOLE UISP Console Gateway Router, Integrated Switch, Multi-gigabit Ethernet

UISP Console Gateway Router, Integrated Switch, Multi-gigabit Ethernet

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

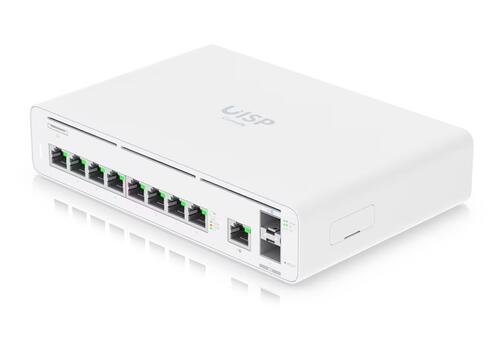

Ubiquiti UISP Console with Integrated Switch and Multi-gigabit Ethernet Gateway Router.

  • (9) GbE RJ45 ports
  • (2) 10G SFP+ ports
  • Up to 8,500 Mbps NAT throughput*
  • Powered by an external AC/DC adapter (included)
  • Additional Power TransPort input for DC redundancy
  • 1U rack or wall-mountable (kits included)

The UISP Console, with its built-in switch equipped with (8) GbE RJ45 LAN ports, (1) 10G SFP+ LAN port and (2) WAN ports, serves as a high-performance gateway capable of supporting the most data-intensive deployments.

The UISP Console is designed in a compact, durable metal casing and is suitable for mounting in 1U rack or on a wall (the mounting kit is included). The console is powered by an external AC/DC adapter, that is also included in packaging.

UISP application support

Bluetooth-powered setup via the UISP Mobile app is available. Thanks to UISP app you can centrally manage your networks and clients with ease. Simply organize your clients' plans, setup billing and invoicing, and grow your customer base. UISP application allows viewing network topology, advanced data analytics, quickly set up devices and manage them on the go with a powerful mobile app.

Specification:

Mechanical
Dimensions 210.4 x 140.2 x 43.7 mm (8.3 x 5.5 x 1.7")
Weight 1.5 kg (3.2 lb)
Enclosure materials SGCC steel, polycarbonate
Hardware
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
Memory 4 GB DDR4
Onboard flash storage 16 GB eMMC
Onboard storage 128 GB SSD
Card slot (1) microSD
Networking interface (8) LAN: GbE RJ45 ports
(1) LAN: 1/10G SFP+ port

(1) WAN: GbE RJ45 port
(1) WAN: 1/10G SFP+ port
Management interface Ethernet In-band
Bluetooth
Power method (1) External AC/DC adapter
(1) Power TransPort DC input 27V DC, 1.5A
Power supply 24V DC, 2.5A power adapter (included)
Supported voltage range 24—28V DC
Max. power consumption 30W
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
Operating temperature -10 to 50° C (14 to 122° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
RJ45 data ports Speed/link/activity
SFP+ data ports Speed/link/activity
