Designed with input from industry professionals, this switch is engineered for 1G AV over IP. Enjoy rear-facing ports that ensure a clean integration in AV racks, and pre-configuration for out-of-the-box functionality.
POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
REFINED DESIGN PROVIDES MOUNTING FLEXIBILITY
Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.
Primary Port Speed : 1 Gigabit
Number of Ports : 12 (10x 1G, 2x SFP)
PoE Ports / Budget : 8 PoE+ (30W/port), 125W Budget
IGMP Support : Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support : Yes, up to 12kb
Acoustics : Fanless or 30dB@25ºC
Power Consumption : With PoE: 163.9W/559.555Btu/hr; Without PoE: 17.32W/59.13Btu/hr; Standby without any port connection: 8.53W/29.121Btu/hr
AVB Support : Yes. Electronic license required, activation key sent via email (AVB4212P-10000S)
Third party support : Domotz
Dimensions (WxDxH) : 440 x 200 x 43.2mm
Weight : 2.85Kg (6.28lb)

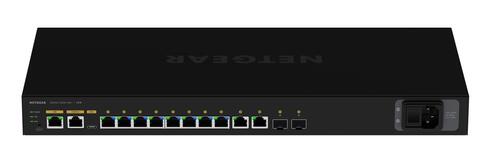

What's in the Box : M4250-10G2F-PoE+ (GSM4212P)
Console USB Type-C and RJ45-DB9 cables
Rack-mounting standard brackets
Longer brackets for recessed mounting
Rubber footpads for tabletop installation
