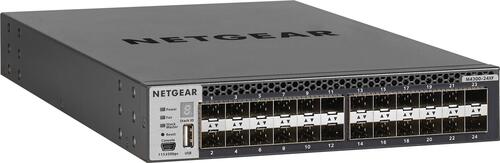

NETGEAR XSM4324FS-100AJS 24-Port 10GigE Stackable Managed Switch with 24xSFP+

24-Port 10GigE Stackable Managed Switch with 24xSFP+

Half Width 24x10G Stackable Managed Switch with 24xSFP+

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • All (24) 10G SFP+ ports are 1G backwards compatible
  • Two shared 10GBASE-T copper ports
  • The (2) shared copper ports are 1G backwards compatible
  • Modular PSU (APS250W)
  • Innovative “Spine and Leaf” NSF stacking with all M4300 switches

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge and SMB core deployments with unrivalled ease of use.

The 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies.

Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack.

Dual redundant, modular power supplies equipping full width models contribute to business continuity management.

Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

Acoustics

39.07 dB @25°C (77°F)

Power Consumption (Max)

87.2 Watts

10G RJ45 Ports

2 x share 10GBASE-T (Fast Ethernet, 1G and 10G speeds)

10G Fiber SFP+ Ports

24 x SFP+ (1G and 10G speeds)

Feature Set

Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)

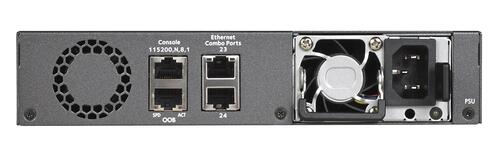

Management Ports

• 1G Ethernet service port for out-of-band management (OOB, RJ45)
• RS232 straight-through serial RJ45 for local management console
• Mini-USB port for local management console
• USB port for local storage, logs, configuration or image files

Form Factor

• Half-Width enabling one or two 10G switches in a single rack space for redundant top-of-rack
• 1 modular PSU
