QNAP TL-R400S High-performance short-depth 4-Bay rackmount SATA 6GB/s JBOD storage enclosure kit

High-performance short-depth 4-Bay rackmount SATA 6GB/s JBOD storage enclosure kit

4-bay 1U rackmount SATA JBOD expansion unit with a QXP-400eS-A1164 PCIe SATA host card and 1 SFF-8088 to SFF-8088 SAS/SATA 6Gb/s external cables.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The TL-R400S includes both the required PCIe host card and the external cable needed to connect it directly to a Windows or Linux PC. So if you're planning to install the TL-R400S on a standard Windows PC, you should not need to buy any additional interface card or cable - the included card and SFF-8088 cable are intended exactly for that use case.

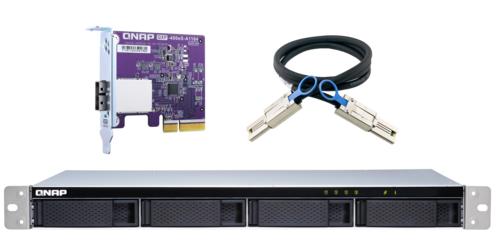

The package contents include:
QXP-400eS-A1164 PCIe SATA host bus adapter (HBA)
SFF-8088 to SFF-8088 external Mini-SAS cable

(Your PC must have an available PCIe slot (the included QXP-400eS-A1164 is a PCIe 3.0 x2 card)

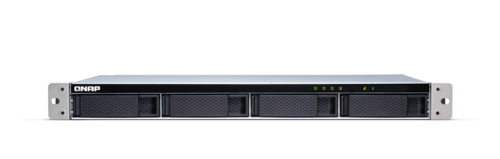

Expand your storage capacity with the QNAP TL-R400S, a high-performance 4-bay SATA JBOD expansion enclosure designed for QNAP NAS systems, Windows servers, and Linux/Ubuntu environments. Featuring a compact short-depth 1U rackmount design, the TL-R400S is ideal for space-constrained racks, network cabinets, and installations with extensive cabling requirements.

The TL-R400S provides four SATA 6Gb/s drive bays and connects via the included QXP-400eS-A1164 PCIe expansion card and high-speed SFF-8088 interface, delivering up to 24Gb/s of aggregate bandwidth for reliable backup, archiving, and storage expansion applications. Unlike USB-based expansion units, the direct SATA connection ensures consistent performance and lower latency for demanding storage workloads.

Designed for flexibility, the TL-R400S supports both 3.5-inch and 2.5-inch SATA HDDs and SSDs, with hot-swappable drive bays for simplified maintenance and upgrades. When connected to a QNAP NAS, storage can be managed directly through QTS or QuTS hero, allowing administrators to create storage pools, volumes, and snapshots. Windows and Ubuntu users can manage and monitor the enclosure using the QNAP JBOD Manager utility.

With dual cooling fans, a robust 100W power supply, and enterprise-ready monitoring capabilities, the TL-R400S delivers a dependable and cost-effective solution for growing storage requirements without the need to replace existing infrastructure.

Key Features

  • 4-bay 1U rackmount SATA JBOD expansion enclosure

  • Compact short-depth chassis ideal for shallow racks and cabinets

  • Supports 3.5-inch SATA HDDs and 2.5-inch SATA HDDs/SSDs

  • High-speed SATA 6Gb/s connectivity via SFF-8088 interface

  • Includes QXP-400eS-A1164 PCIe SATA expansion card

  • Up to 24Gb/s aggregate bandwidth

  • Compatible with QNAP NAS, Windows, and Ubuntu/Linux systems

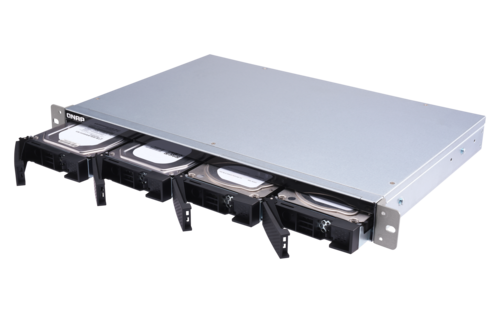

  • Hot-swappable drive bays for easy maintenance

  • Managed through QTS/QuTS hero or QNAP JBOD Manager

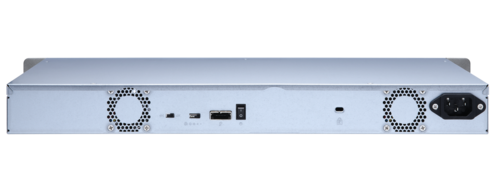

  • Dual 40mm cooling fans and 100W power supply

Ideal For

  • Expanding storage capacity for QNAP NAS systems

  • Backup and archive repositories

  • Video surveillance storage expansion

  • Virtualisation and business data growth

  • Windows and Linux server storage expansion

Technical Specifications

Specification Details
Drive Bays 4 x SATA
Drive Support 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
Form Factor 1U Rackmount (Short Depth)
Host Interface 1 x SFF-8088
Included Expansion Card QXP-400eS-A1164
Data Transfer SATA 6Gb/s
Cooling 2 x 40mm Fans
Power Supply 100W Internal PSU
Hot-Swap Support Yes
Operating Systems QNAP QTS / QuTS hero, Windows, Ubuntu/Linux
