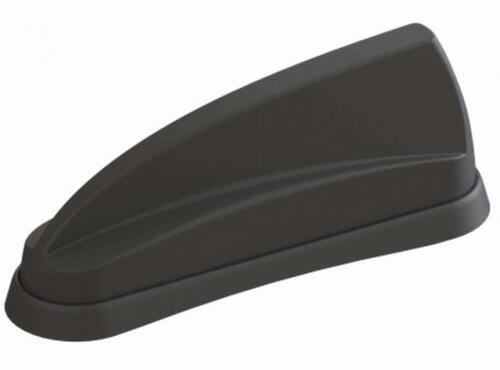

Panorama Antennas SH-IN2616 Shark Fin Antenna for Vehicles, 5G/4G, 2x Cellular, 1x GPS

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

This antenna can be fitted on a metallic or non-metallic panel and still offer similar performance.

The style shark fin housing contains a 2x2 MiMo antenna function for 4G/5G (617-960/1710-6000MHz) and an active antenna for GPS/GLONASS/Galileo/BeiDou, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.

This design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential. Requiring only a single hole mounting, it reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle’s resale value.

  • Discreet automotive OEM SharkFin design
  • Multiple antenna functions in a single housing
  • Single hole mounting - reduces vehicle damage, installation time & cost
  • Can be mounted on a metallic or non-metallic panel surface
  • Will fit between roof ribs on all major vehicle manufacturers
  • Can be retrofitted to a vehicle replacing the factory fitted antenna


  • Model: SH-IN2616
  • Frequency and gain:
    • Cable 1 & 2 (cellular):
      • 5dBi at 617-960MHz
      • 8dBi at 1710-3800MHz
      • 9dBi at 4900-6000MHz
    • Cable 3 (GPS):
      • 26db at 1562-1612MHz
  • Impedance: 50 Ohms
  • Cable and connectors:
    • Cellular: 2 x 16' CS29 (double shielded RG58) with SMA Male
    • GPS: 1 x 16' RG58 with SMA Male
  • Dimensions: 3.54" height, 9.56" length, 2.4" width
  • Radome material: ASA, silicon rubber, aluminum alloy
  • Operating temperature: -40° / 176°F (-40° / +80°C)
  • Ingress Protection: IP66
  • Mounting:
    • Mounting type: Panel mount
    • Max panel thickness: 0.27” (10mm)
    • Mounting hole: 3/4” (19mm)
  • Color: Black
