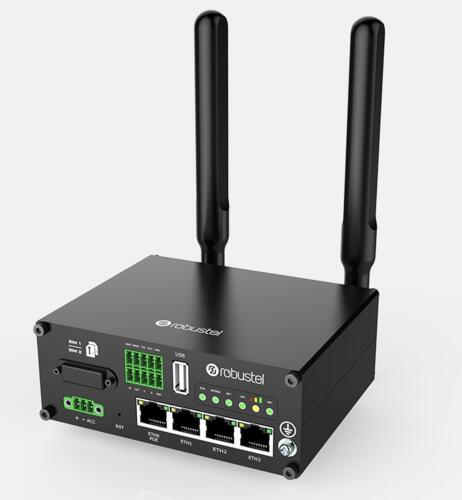

Robustel B044742 Industrial Dual SIM Cat6 LTE Router, WiFi, 4x Ethernet, PoE (R2110-4L)
High Speed Smart LTE / LTE-A Router
Offering state-of-the-art mobile connectivity for internet of things applications.
The Robustel High Speed Smart LTE /LTE-A Router (R2110) is a rugged cellular router offering state-of-the-art mobile connectivity for internet of things applications.
R2110 is a powerful platform developed based on RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with excellent user experience. Meanwhile, RobustOS offers Software Development Kit (SDK) allows partners and customers to develop IoT applications by using C, C++. It also provides various Apps to meet fragmented IoT market demands.
- Supports WWAN, WAN, WLAN link backup and ICMP detection
- Supports cold backup , warm backup and load balancing
- RobustOS + SDK + App
- IPsec/OpenVPN/GRE
- Management and maintenance via Web/CLI/SNMP/RCMS
- Robust industrial design desktop or wall mounting or DIN rail mounting
4G:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
LTE-TDD: B38/B40/B41
3G: WCDMA: B1/B3/B5/B8
|
Cellular Interface |
|
|
Number of antennas |
2 (MAIN + AUX) |
|
Connector |
SMA-K |
|
SIM |
2 Mini SIM (2FF) |
|
Ethernet Interface |
|
|
LAN port |
3 x LAN (10/100/1000 Mbps) |
|
WAN port |
Supports 802.3at PoE (PD) on ETH0 |
|
1 x WAN (10/100/1000 Mbps) |
|
|
Magnet isolation protection |
1 KV |
|
WiFi Interface |
|
|
Number of antennas |
2 |
|
Connector |
RP-SMA-K |
|
Standards |
802.11a/b/g/n/ac 2*2 MIMO, supports AP and Client modes |
|
Frequency bands |
2.412 – 2.472 GHz (2.4 GHz ISM band) |
|
5.15 – 5.825 GHz (5 GHz ISM band) |
|
|
Security |
Open, WPA, WPA2, WEP |
|
Encryption |
AES, TKIP, WEP64 |
|
Data speed |
5G: Up to 867Mbps |
|
2.4G: Up to 300Mbps |
|
|
Bluetooth Interface (Optional - available on other R2110 models) |
|
|
Number of antennas |
1 |
|
Connector |
RP-SMA-K |
|
Standards |
BLE 5.0 Compatible with BLE 4.2, BLE 4.0 |
|
GPS (Optional - available on other R2110 models) |
|
|
Number of antennas |
1 |
|
GNSS technology |
GPS |
|
Connector |
SMA-K with 50 ohms impedance |
|
Tracking sensitivity |
GPS: greater than -148 dBm |
|
Horizontal position accuracy |
GPS: 2.5 m |
|
|
|
|
Serial Interface |
|
|
Number of ports |
1 x RS-232 + 1 x RS-485 |
|
Connector |
2 x 3-pin 3.5 mm female socket |
|
ESD protection |
±15 KV |
|
Baud rate |
300bps to 115200bps |
|
DI/DO |
|
|
Type |
1x DI + 1 x DO, wet contact |
|
Connector |
2 x 2-pin 3.5 mm female socket |
|
Isolation |
3.75KV DC |
|
Absolute maximum VDC |
“V+” +30V DC (DI), +30V DC (DO) |
|
Absolute maximum ADC |
100 mA |
|
Others |
|
|
Reset button |
1 x RST |
|
SD |
1 x Micro SD interface |
|
Expansion |
1 x USB2.0 Host; 5V/500mA |
|
LED indicators |
1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x NET, 1 x WIFI |
|
Built-in |
Watchdog |
|
Software (Basic features of RobustOS) |
|
|
Network protocols
|
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH2, DDNS, etc. |
|
VPN tunnel |
IPsec, OpenVPN, GRE |
|
Firewall |
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Management |
Web, CLI, SMS |
|
Serial port |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
App Center (Available Apps for RobustOS) |
|
|
Apps* |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Bluetooth, Dynamic Route, Data Guard |
|
*Request on demand. For more Apps please visit www.robustel.com. |
|
|
Power Supply and Consumption |
|
|
Connector |
3-pin 3.5 mm female socket with lock |
|
Input voltage |
9 ~ 36 VDC (Support POE-PD) |
|
Power consumption |
Idle: 500 mA@12 V |
|
Data link: 1.3 A (peak) @12 V |
|
|
SDK |
|
|
Supported programming language
|
C, C++ |
|
Flash available for SDK |
5 MB |
|
RAM available for SDK |
256 MB |
|
Power Supply and Consumption |
|
|
Connector |
3-pin 3.5 mm female socket with lock |
|
Input voltage |
9 ~ 36 VDC (Support POE-PD) |
|
Power consumption |
Idle: 500 mA@12 V Data link: 1.3 A (peak) @12 V |
|
Physical Characteristics |
|
|
Ingress protection |
IP30 |
|
Housing & Weight |
Aluminium, 500 g |
|
Dimension |
125 x 100 x 48 mm |
|
Installations |
Desktop, wall mounting and DIN rail mounting |
|
Operating temperature |
Normal operation: -20 ~ +55 °C Extended operation: -25 ~ +70 °C |
|
Storage temperature |
-40 ~ +85 °C |
|
Relative humidity |
5 ~ 95% RH |
|
Approvals |
|
|
Regulatory |
CE, RCM, Telec, JATE, BQB |
|
Carrier |
Telstra |
|
Application |
E-mark (Vehicle) |
|
Environmental |
RoHS 2.0, WEEE |
Package Contents
Robustel R2110 High Speed Smart LTE Router
3-pin 3.5 mm male terminal block with lock for power supply
2*5-pin 3.5 mm male terminal block for serial port
Optional Accessories
RP-SMA WiFi antenna
3G/4G SMA cellular antenna
Wall mounting kit
35 mm DIN rail mounting kit
AC/DC power adapter (12V DC, 1.5 A) bare wire
|
