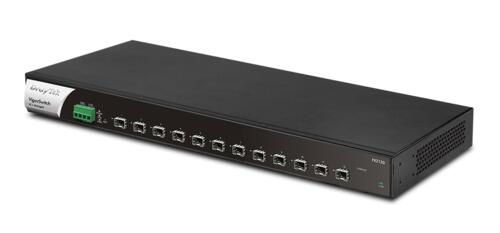

DrayTek DSFX2120 12-Port 10GbE Layer 2+ Managed Switch, 12 x 10GbE SFP+

12-Port 10GbE Layer 2+ Managed Switch, 12 x 10GbE SFP+

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • Layer 2+ Managed 10GbE Switch

- 12 x 10 Gigabit SFP+ Ports
- Up to 240 Gbps switching capacity

  • Port based and 802.1q tagged VLANs
  • Voice and Surveillance VLANS with QoS (OUI Mode) providing improved call and video quality
  • ONVIF (Open Network Video Interface Forum) compliant
  • QoS with 8 queues for traffic prioritisation
  • IP Conflict Prevention to avoid IP conflicts caused by misconfigured or malicious hosts
  • Secure local network by 802.1x Port Security, ACL, IP Source Guard and DHCP Snooping
  • Authentication by local database, multiple RADIUS, and TACACS+ server
  • IEEE 802.3az (Energy-Efficient Ethernet) Compliant
  • Support SNMP v1/v2c/v3, RMON, and Syslog for network monitoring
  • Port Mirroring & Link Aggregation
  • Compliant with Central Switch Management features of DrayTek Vigor devices for simplified network management
  • Compliant with VigorConnect free software for local network management
  • Supports VigorACS 3 Central Management Software for remote management
  • RJ45 Console Port
  • DC power input in addition to AC input power

Designed for Fibre backbones – 12-Port 10GbE SFP+ L2+ Web Smart Managed Switches
The VigorSwitch FX2120 series switches are Layer 2+ Managed Gigabit Switch with 12 x Gigabit SFP+ Ports for connection of optic fibre modules or DAC cables. You can configure or monitor the VigorSwitch through the CLI interface from the console port. In addition, you can provide power from an external power supply for redundancy through the 12V DC input connector.

Equipped with Layer 3 features such as DHCP Server and VLAN Routing, the VigorSwitch FX2120 series switches support the gateway router to enhance local network sustainability and efficiency. Other advanced features, including IP Conflict Detection & Prevention, ONVIF Surveillance, and Ping Watchdog further enhance applications in mid-sized networks.

The ONVIF Surveillance features are designed for managing IP cameras on the network. They include an ONVIF Snapshot Alert function which sends the last frame from the camera before it stops responding to the network administrator.

The VigorSwitch FX2120 series switches are suitable for advanced applications such as:

10Gbps backbone for ISPs
Cloud service providers
IoT applications

Auto Surveillance & Voice VLAN
Recognise traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritisation.

10G SFP+
Provides 10G-capable fibre SFP ports for aggregation or uplinking to the core switches.

ONVIF-Friendly
Recognise ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more

IPv6 Ready
VigorSwitch FX2120 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.

Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch FX2120 to route the inter-VLAN traffic directly and offload the router.

Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo

IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more

Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.

Access Control
VigorSwitch FX2120 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.

Central Switch Management
Set up VLANs easily from the router and get a centralised hierarchy view of the switches. Learn more

QoS (Quality of Service)
Improve the performance of critical traffic by prioritising it with CoS, DSCP, and IP Precedence tag.

Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.
