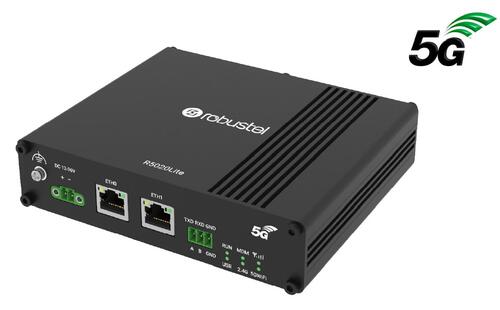

Robustel R5020L-A-5G-A25GL High Speed Smart 5G Router, 2x Eth, 1x RS232/RS485, dual-band WiFi
The R5020 Lite is Robustel’s new 5G capable router supporting global 5G, 4G and 3G bands. The R5020 Lite leverages the tried and tested high performance CPU platform and RobustOS 5 – an Operating System developed in-house by Robustel that has passed extensive 3rd party penetration testing.
R5020 Lite is compatible with 3GPP Release 16 and targeted at the following applications:
Broadband Failover – R5020 Lite can be configured to use Ethernet or Wi-Fi as primary internet and failover to 5G/4G in the event of an outage. This can help provide resilience to shops and small offices at a reasonable cost and provide sufficient bandwidth for many users. IPsec, DMVPN, GRE+ many more protocols can be used for connections into core networks.
Primary Broadband – Cellular network operators can now provide unlimited 5G tariffs at very reasonable prices. For many, a chance to cut the cables and use a wireless internet connection can be technically or commercially favorable.
SD-WAN – whilst many appliances have cellular options built-in, the R5020 Lite can offer a very low-cost way to add a 5G backup route & by virtue of being able to located externally to the appliance, is more likely to get a good 5G signal!
Key Features:
- Low cost industrial 5G Router
- Global 5G/4G/3G cellular connections
- Cutting-edge 5G 3GPP Release 16 cellular interface
- Supports Ethernet, Wi-Fi and 5G/4G internet with auto-failover
- 1 x RS232/RS485 (software configurable) ports for connection to industrial/legacy devices
- Fully programmable Operating System with well documented SDK
- Multiple VPN options are available, including DMVPN, IPsec, L2TP + more…
- Free cloud management platform – RCMS
- Robust metal enclosure with small footprint – DIN-rail + wall mount options
RCMS is Robustel’s free router monitoring service that is fully compatible with the R5020 Lite. It is an extremely polished piece of software hosted on MS Azure & available as a privately hosted instance. You can try Robustel’s free router management platform by signing up here: https://rcms-cloud.robustel.net

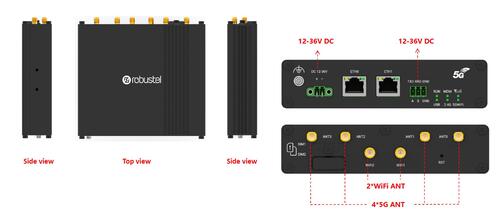

Hardware
|
Cellular Interface |
|
|
Number of antennas |
4 (ANT0 + ANT1 + ANT2 + ANT3) |
|
Connector |
SMA-K |
|
SIM |
2 x Mini SIM (2FF) |
|
Ethernet Interface |
|
|
Number of ports |
2 x 10/100/1000 Mbps, |
|
2 LAN by default, can be configured as |
|
|
1 WAN + 1 LAN |
|
|
Isolation protection |
1 KV |
|
|
|
|
WiFi Interface |
|
|
Number of antennas |
2 (WiFi1 + WiFi2) |
|
Connector |
RP-SMA-K |
|
Standards |
802.11b/g/n/ac 2*2 MIMO, supports AP and Client modes |
|
Frequency bands |
2.412 – 2.472 GHz (2.4 GHz ISM band) 5.15 – 5.825 GHz (5 GHz ISM band) |
|
Security |
WPA, WPA2, WEP, WPA3* |
|
Encryption |
AES, TKIP, WEP64 |
|
Data speed |
5G: Up to 867Mbps 2.4G: Up to 300Mbps |
|
|
|
|
Serial Interface |
|
|
Number of ports |
1 x RS232 or 1 x RS485 (Software configurable) |
|
Connector |
1 x 3-pin 3.5 mm female socket |
|
ESD protection |
±8 KV air discharge, ±6 KV contact discharge |
|
Baud rate |
300 bps ~ 115200 bps |
|
Signal definition |
RS232: TXD, RXD, GND RS485: Data+ (A), Data- (B), Ground (GND) |
|
Others |
|
|
Reset button |
1 x RST |
|
LED indicators |
1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x Wi-Fi 2.4G,1 x Wi-Fi 5G |
|
Built-in |
Watchdog |
|
Software (Basic features of RobustOS) |
|
|
Network protocols
|
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN,SSH2, DDNS, etc. |
|
VPN tunnel |
IPsec, OpenVPN, GRE |
|
Firewall |
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Management |
Web, CLI, SMS |
|
Serial port |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
Others |
Data Guard, etc. |
|
SDK |
|
|
Supported programming languages |
C, C++ |
|
Flash available for SDK |
5MB |
|
RAM available for SDK |
128MB |
|
App Centre (Available Apps for RobustOS) |
|
|
Apps* |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Data Guard, Captive Portal, WLAN Multi AP |
|
*Upon request. For more Apps please visit www.robustel.com. |
|
|
Power Supply and Consumption |
|
|
Connector |
2-pin 3.5 mm female socket with lock |
|
Input voltage |
12 ~ 36 VDC |
|
Power consumption |
Idle: 370 mA@12 V Data link: 1.7 A (peak) @12 V |
|
Physical Characteristics |
|
|
Ingress protection |
IP30 |
|
Housing & Weight |
Aluminium, 475 g |
|
Dimension |
136 x 115 x 32 mm |
|
Installations |
DIN rail mounting, desktop or wall mounting |
|
Operating Temperature |
-20 ~ +55°C (Normal temperature) -25 ~ +70°C (Extended temperature) |
|
Storage Temperature |
-40 to +85 °C |
|
Relative Humidity |
5 to 95% RH |
|
Regulatory and Type Approvals |
|
|
Environmental |
RoHS2.0 |
|
*in progress |
|
Package contents
Router
2-Pin Terminal Block
3-Pin Terminal Block
Mounting Kit
RMCS Card
Quick Start Guide
Optional
Wall Plug Power Pack
Cellular Antennas
WiFi Antennas
|
