• PoE
  • 4-Port Gigabit Ethernet PoE Switch, integrated DIN mounting

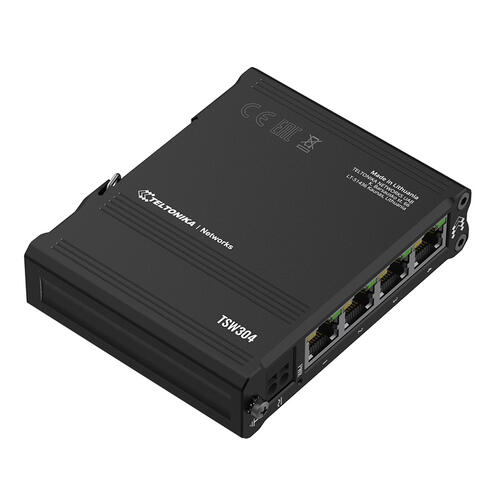

Teltonika TSW304 4-Port Gigabit Ethernet PoE Switch, integrated DIN mounting

4-Port Gigabit Ethernet PoE Switch, integrated DIN mounting

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

DIN RAIL
Built-in, integrated DIN mounting

COMPACT
102 x 25 x 81.5 mm

GIGABIT ETHERNET
4 x Gigabit Ethernet with speeds of up to 1000 Mbps

7 - 57 V
Wide range of supported power supply voltages

DURABILITY
Rugged aluminum housing

FROM -40 °C TO 75 °C
A wide operating temperature range

// TSW304 is Teltonika Networks’ first unmanaged switch with an integrated, built-in DIN rail mount.

// Equipped with four Gigabit Ethernet ports supporting the IEEE 802.3, IEEE 802.3u, and 802.3az Ethernet standards.

// Designed with easy installation in mind, the TSW304 features a compact size with a shock-resistant casing to go along with its integrated DIN mount.

// 10/100/1000 Mbps Ethernet ports for economical, high-bandwidth solutions to provide reliable data throughput.

// 2-pin industrial power socket and wide range of supported power supply voltages (7-57 VDC and 9-40 VAC).

POWER
Connector 2-pin power socket
Input voltage range 7 - 57 VDC; 9 - 40 VAC
PoE (passive) Passive PoE input on port No. 1
Power consumption Idle: 0.26 W / Max: 1.44 W

PHYSICAL INTERFACES (PORTS, LEDS)
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 1 x Power LED, 8 x LAN status LED’s
Power 1 x 2-pin power socket
Ground 1 x Grounding screw

PHYSICAL SPECIFICATION
Casing material Aluminum housing
Dimensions (W x H x D) 102x25x81.5 mm
Weight 210 g
Mounting options DIN rail mounting

OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
