QNAP TL-D800S High-performance 8-Bay desktop SATA 6Gbps JBOD storage enclosure

High-performance 8-Bay desktop SATA 6Gbps JBOD storage enclosure

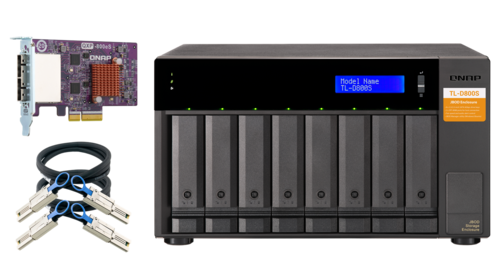

8-bay desktop SATA JBOD expansion unit with a QXP-800eS-A1164 PCIe SATA host card and 2 SFF-8088 to SFF-8088 SAS/SATA 6Gb/s external cables.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The TL-D800S includes both the required PCIe host card and the external cables needed to connect it directly to a Windows or Linux PC. So if you're planning to install it on a standard Windows PC, you should not need to buy any additional interface card or cables - the included card and SFF-8088 cable are intended exactly for that use case.

The package contents include:
PCIe Host Card: QXP-400eS-A1164 PCIe 3.0 x4 (Supports 8 SATA 6Gb/s channels (4 drives per port)
2 × SFF-8088 to SFF-8088 Mini-SAS cables

(Your PC must have an available PCIe slot (the included QXP-400eS-A1164 is a PCIe 3.0 x4 card)

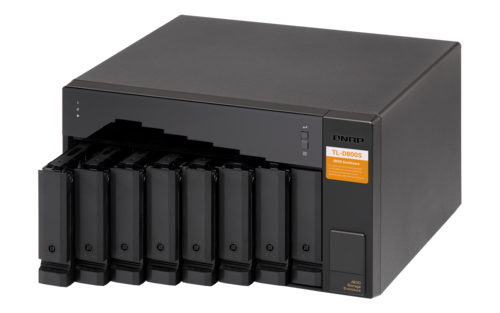

QNAP TL-D800S 8-Bay SATA JBOD Expansion Enclosure

The QNAP TL-D800S is a high-capacity 8-bay desktop JBOD expansion enclosure designed to provide fast, reliable storage expansion for QNAP NAS systems, Windows PCs, and Ubuntu/Linux servers. With support for eight SATA 6Gb/s hard drives or SSDs, the TL-D800S delivers a cost-effective solution for growing storage requirements, backup repositories, media libraries, surveillance retention, and business data archiving.

Utilising high-speed Mini-SAS connectivity and dedicated SATA channels, the TL-D800S offers superior performance compared to traditional USB-based storage enclosures. Each drive is connected directly through the included QXP-800eS-A1164 PCIe host adapter, ensuring consistent throughput and efficient access to stored data.

The enclosure includes two SFF-8088 Mini-SAS cables and the QXP-800eS-A1164 PCIe expansion card, enabling straightforward deployment with compatible systems. QNAP JBOD Manager software provides centralised monitoring of drive health, enclosure status, fan operation, and firmware updates when connected to Windows or Ubuntu systems.

Ideal for businesses, creative professionals, video surveillance deployments, and data-intensive environments, the TL-D800S provides flexible storage expansion without the expense and complexity of replacing existing infrastructure.

Key Features

  • 8-bay desktop SATA JBOD expansion enclosure
  • Supports 3.5" and 2.5" SATA HDDs and SSDs
  • High-speed SATA 6Gb/s architecture
  • Includes QXP-800eS-A1164 PCIe host adapter
  • Includes 2 x SFF-8088 to SFF-8088 Mini-SAS cables
  • Compatible with QNAP NAS, Windows PCs, and Ubuntu/Linux systems
  • Dedicated SATA channels for optimal performance
  • Lockable drive trays help prevent accidental drive removal
  • Monitor enclosure and drive health using QNAP JBOD Manager
  • Quiet cooling system designed for continuous operation
  • Ideal for backup, archive, surveillance, media storage, and capacity expansion

Specifications

  • Drive Bays: 8 x 3.5"/2.5" SATA HDD/SSD
  • Interface: 2 x SFF-8088 Mini-SAS
  • Included Host Card: QXP-800eS-A1164 PCIe SATA HBA
  • Supported Operating Systems: QNAP QTS/QuTS hero, Windows, Ubuntu Linux
  • Form Factor: Desktop/Tower
  • Drive Support: SATA 6Gb/s, 3Gb/s
  • Enclosure Type: JBOD Expansion Unit (Diskless)
