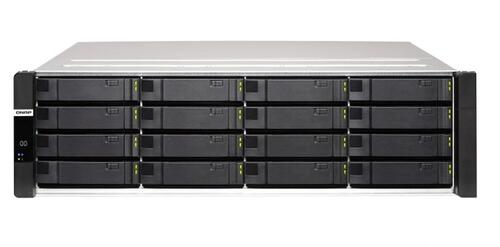

QNAP ES1686DC-2142IT-128G 16-Bay Enterprise ZFS NAS, 2.5/3.5 in. SAS 12G/6G, Xeon D-2142IT CPU

Delivering enterprise high availability, the ES1686dc Enterprise ZFS NAS features Intel® Xeon® D processors, dual active controllers, up to 512 GB DDR4 ECC memory, SAS 12Gb/s, and ZFS that supports logical volume management. The ES1686dc runs the latest QES 2.1.0 operating system that supports near-limitless snapshots, SnapSync, block-level data deduplication, and inline data compression.

Whether being used as a mission-critical file server, virtualization server, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup & recovery, the ES1686dc helps your business to achieve service-level agreements for performance and uptime.

- Intel® Xeon® D dual active-active controllers provide supreme uptime and redundancy to ensure high availability.
- Battery-protected DRAM write to cache data protection and Flash read acceleration provides industry-leading random access performance.
- PCIe expandability allows for 10GbE/25GbE/40GbE adapters to increase application performance.
- Four 10GbE SFP+ ports accelerate virtualization, large file sharing, and intensive data transfer.
- Near-limitless snapshots and SnapSync for snapshot remote backup assist businesses to resume essential services in the shortest time.
- Supports VMware® vSphere® 6.5, Windows Server® 2016 and Citrix® XenServer® 7.0 for storage virtualization. Compatible with OpenStack® cloud environments.

Active-Active high availability with optimal storage efficiency

In Active-Active storage system architecture, both controllers are able to provide a complete range of services, which is different from the Active-Standby architecture of single-controller systems. The Active-Active architecture does not have the disadvantage of idle computing resources. To leverage the strengths of the ES1686dc Active-Active controller architecture, it is recommended to create multiple storage pools and distribute their ownership between both controllers. This allows simultaneous output from both controllers for better load balancing.

Active-Standby single-controller system

With two HA systems you are paying twice the price and causing a load imbalance as workloads are only processed on the active system. A power outage could cause data loss, and the disconnected network invalidates the HA architecture.

Active-Active dual-controller system

Both controllers of the ES1686dc can carry traffic, along with Copy-To-Flash protection against power failure and the dual-path SAS interface. Besides conserving computing resources, a high-speed, uninterrupted, and high-availability storage service is also provided through communication protocols such as SMB, NFS and iSCSI.

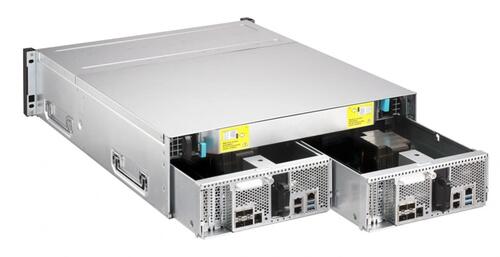

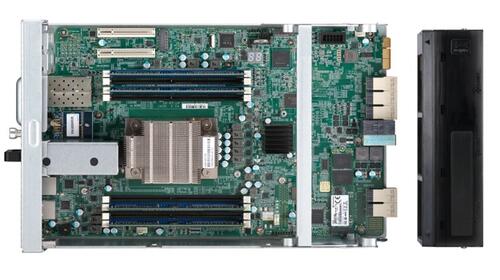

Intel® Xeon® D dual-controller ensures high availability and failure-resistant service

Powered by two Intel® Xeon® D processors, the ES1686dc features a dual active-active controller architecture that provides failover/failback operations as the standby controller can quickly take over if one controller breaks down. Redundant hot-swappable power supplies and cooling fans are also included to provide businesses with near-zero downtime high availability. The ES1686dc connects to the JBOD enclosure (EJ1600 v2) via the dual-path mini-SAS design to sustain continuous operations even if a JBOD cable is disconnected. Designed around redundancy, the ES1686dc is the best realization of reliable enterprise storage for uninterrupted mission-critical enterprise tasks and productivity.

Multi-level cache technology with both read and write

The ES1686dc simultaneously supports main memory read cache (L1 ARC), SSD secondary read cache (L2 ARC), and memory write cache (ZFS Intent Log) to meet performance demands for various enterprise applications.

PCIe expansion for 40GbE high-speed networks

The ES1686dc provides two PCIe Gen3 x8 slots connected to the CPU, allowing you to install lightning-fast 10GbE/40GbE network cards to boost virtualization, media streaming, and other bandwidth-demanding applications. Installing Mellanox® Smart NICs further adds support for iSER for improved VMware® virtualization performance. You can also install a SAS expansion card (SAS-12G2E) for connecting up to seven 16-bay EJ1600 v2 expansion enclosures to seamlessly expand the potential storage capacity over 1PB, with unprecedented performance of up to 48Gbps per host connection.

Dual controller NAS: High reliability and high availability

"Reliability" is the priority for mission-critical business applications. The ES1686dc adopts dual active-active controllers to provide the most reliable base for business IT storage.

Leverage the 6Gbps SAS to SATA drive adapter

While SATA 6Gb/s SSDs provide high-performance yet affordable storage, the lack of dual-port support makes them unsuitable for dual-controller environments. The QDA-SA and QDA-SA2 adapters are designed for QNAP Enterprise ZFS NAS and allows the use of a SATA 6Gb/s drive in a 3.5-inch SAS drive bay - providing the ability to expand storage capacity by using cost-effective SATA drives. By installing a SATA drive with the QDA-SA/QDA-SA2 into the dual-controller ES1686dc, the SATA drive can share these SAS dual-port advantages to ensure a high-availability, fault-tolerant enterprise storage environment.

QES 2.1.0: ZFS-based, and optimized for all flash performance

The ES1686dc features the QES (QNAP Enterprise Storage) 2.1.0 operating system, which is based on the simple and efficient FreeBSD kernel and the ZFS file system that has been proven through years of experience to be most suitable for high-end enterprise applications. Not only does QES 2.1.0 provide reliable data protection, recovery, and business-class features, it is optimized for flash storage and is capable of driving outstanding performance for all-flash storage arrays to accelerate mission-critical services and eliminate challenges in VDI environments. QES 2.1.0 also comes with Quality of Service (QoS) capabilities that help ensure consistent primary storage performance in multi-application environments. Continuing the same user experience with the intuitive QTS operating system, QES provides business users with an easy learning curve for quick implementation within IT infrastructures.

Unleashed SSD potential - cost-effective and agile with ultimate performance

QES 2.1.0 features QNAP's exclusive Write Coalescing algorithm that further optimizes all-flash performance in ZFS, providing a highly cost-effective all-flash solution for enterprise-class data management and mission-critical services.

Note: The Write coalescing algorithm in QES 2.1.0 does not support for dual-controller NAS. This will be supported in future versions of QES.

Deduplication and compression to maximize VDI storage performance

In VDI environments where there could be over 90% duplicate data from OS images and applications that are spread over virtual desktops, the QES-powered ES1686dc provides businesses with the most cost-effective remote virtual desktop platform and mission-critical information warehousing.

Inline data deduplication

Block-based data deduplication optimizes storage usage and significantly decreases storage capacity requirements.

Inline compression

Shrinks data size to reduce storage I/O workloads for improved performance. In VDI, deduplicated virtual desktops are easily cached to achieve optimal virtual desktop performance.

Inline compaction

Especially helpful for increasing SSD storage utilization efficiency when highly-repetitive data or massive small files (e.g. transaction logs of banks or e-commerce) are generated. It delivers higher cost efficiency of all-flash storage systems.

Note: Data compaction in QES 2.1.0 does not support dual-controller NAS. This will be supported in future versions of QES

Self-Healing ensures data integrity and reliability

Designed with a focus on data integrity, a fundamental aspect of storage security and reliability, the QES-based ES1686dc uses its end-to-end checksums to detect and correct silent data corruption caused by hardware defects, bugs in firmware or metadata errors. If integrity violations are detected, QES automatically repairs the

Streamlined remote backups with nearly limitless snapshots and SnapSync

The ES1686dc supports up to 65,535 snapshots for iSCSI LUN and shared folders (if 1 snapshot is created every hour, 24 snapshots per day, then up to 7 years worth of snapshots can be created without needing to delete any) and replicates snapshots to remote servers by using the block-level SnapSync. In the event of a primary site failure, SnapSync assists businesses to resume essential services in the shortest possible time.

Business Continuity

Copy-on-write technology makes QES snapshot creation almost instantaneous without affecting ongoing data writing. SnapSync supports incremental backups, real-time deduplication and compression. The source ES1686dc will perform deduplication before compressing the metadata to reduce synchronized data and save bandwidth resources.

Create VMware/Windows backups for VSS-Aware applications using QNAP Snapshot Agent

QNAP Netbak Replicator is easy-to-use and VSS-aware backup software, helping businesses to create complete backups in data centers and virtualization environments without needing additional software. To build a QNAP Snap Agent and VSS Hardware Provider operating environment, all applications (including VSS Service, Requestor, Provider and QNAP Snap Agent) can be deployed with VSS-Aware applications on the same server, and the minimal requirements are only one ES1686dc and one server for it to be operational.

Compatible with VMware, Microsoft and Citrix virtualization, and supports iSER

The ES1686dc supports VMware® vSphere® 6.5, Windows Server® 2016, and Citrix XenServer® 7.0 for flexible deployment and management in virtualization environments. It also supports VMware® VAAI and Microsoft® ODX to increase performance by offloading server loading for ESXi® server and Hyper-V® respectively. The QNAP vSphere Client plug-in, Web plug-in and QNAP SMI-S provider are also supported to increase the efficiency of operations and management in virtualization applications. The ES1686dc and VMware® ESXi server installed with Mellanox® Smart NICs that support iSER can acquire iSER advantages to offload CPU workloads with boosted VMware® virtualization performance.

QES is OpenStack Ready to explore out-of-the-box enterprise cloud services

QES supports OpenStack® Cinder and Manila file sharing services. With the QNAP Cinder Driver, the ES1686dc can provide block-level storage space to virtual machines. It not only accelerates the deployment of virtual machines and enhances virtual machine image access efficiency through iSCSI, but it is also easier to integrate into commercial cloud storage platforms, providing businesses with a flexible, easy-to-use, and low-cost storage solution.

Specifications

CPU

Intel® Xeon® D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller

CPU Architecture

64-bit x86

Floating Point Unit

Yes

Encryption Engine

(AES-NI)

System Memory

64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller

Maximum Memory

512 GB (8 x 64GB)

Memory Slot

8 x R-DIMM/LR-DIMM DDR4
IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.

Flash Memory

4GB (Dual boot OS protection)

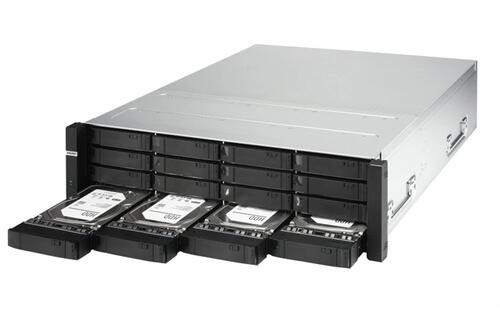

Drive Bay

16 x 3.5-inch
SAS 12Gb/s, backward compatible to SAS 6Gb/s

Drive Compatibility

3.5-inch bays:
3.5-inch SAS/SATA hard disk drives
2.5-inch SAS/SATA hard disk drives
2.5-inch SAS/SATA solid state drives
The QDA-SA adapter is designed for QNAP Enterprise ZFS NAS and allows the use of a SATA 6Gbps drive in a 3.5-inch SAS drive bay

Hot-swappable

Yes

SSD Cache Acceleration Support

Yes
Read cache only

Cache for Copy To Flash (C2F)

1 per each controller (64GB)

Gigabit Ethernet Port (RJ45)

3 for each controller (one for remote management)

10 Gigabit Ethernet Port

4 x 10GbE SFP+ for each controller

Jumbo Frame

Yes

PCIe Slot

2
Slot 1: PCIe Gen 3 x8 (CPU)
Slot 2: PCIe Gen 3 x8 (CPU)

USB 3.2 Gen 1 port

2 per each controller

Form Factor

3U Rackmount

LED Indicators

System Power LED (Green): on/off
System Status (Green/ Orange): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged
LCD Status Display (Two-digit number): Status of JBOD connection

Buttons

Power, Reset

Dimensions (HxWxD)

132 × 483.05 × 630.62 mm

Weight (Net)

25.83 kg

Weight (Gross)

32.69 kg

Operating temperature

0 - 40 °C (32°F - 104°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27°C (80.6°F)

Power Supply Unit

Redundant/ Hot Swap Power Vin:90~264VAC;770W

Power Consumption: Operating Mode, Typical

500.87 W

Fan

Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)

Sound Level

55.8 db(A)

System Warning

Buzzer

Safety Standard

FCC Class A (USA only)
CE Mark ( EN55022 Class A, EN55024)
EN60950
BSMI
VCCI
CB
LVD
