Tycon Power TP-DCDC-1224 PoE Injector, 100Mbps Ethernet 9-36VDC In, 24V DC Out

Power Ubiquiti and MikroTik 24V PoE devices from a 12 or 24V power system such as a battery.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

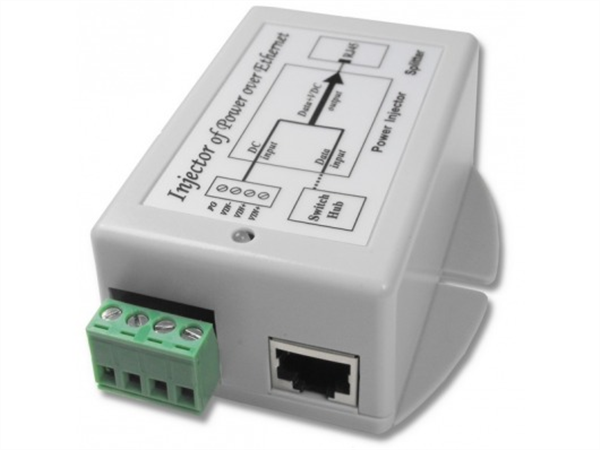

The Tycon Power Systems TP-DCDC-1224 PoE Injector is a low cost and high reliability solution for those requiring 24VDC Power Over Ethernet voltage from a 12 or 24V power system (such as a battery).

This is an integrated POE injector to apply the 24VDC to PoE devices over CAT5 Ethernet cable. The input voltage can be between 9VDC and 36VDC.

Protection for surge, short circuit and overload is included.

These units have power output of 19W.

- Input Voltage 9-36VDC; Output 24VDC
- Integrated POE Inserter
- High Power 19W
- Short Circuit, Over Current and Over Voltage Protection
- High Temperature Operation
- Removable Wire Terminal Input for up to 12AWG wires

Dimensions: 85 x 76 x 36mm
Weight: 134g
