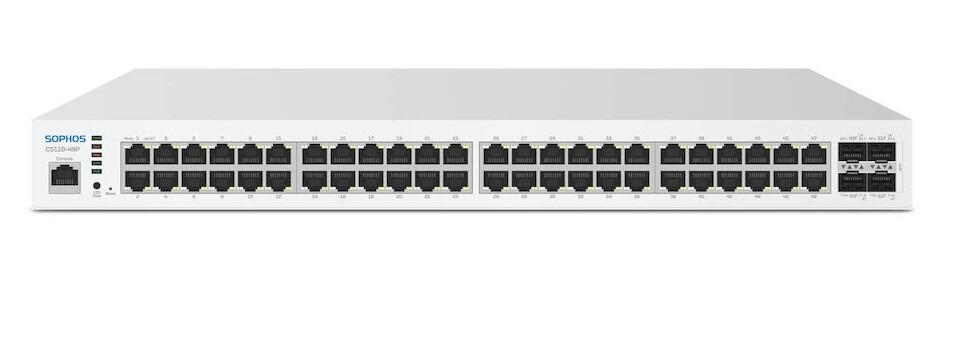

SOPHOS C14B1CSAU CS110-48P Sophos Switch with Support and Services - 1 year - 48 port with PoE

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

CS110-48P PoE Managed Ethernet Switch, 48x 10/100/1000Base-T ports, 4x SFP+ 10G Ports - with Support and Services - 1 year

The new Sophos Switches are the perfect way to connect and power devices on your Local Area Network. With port security and VLAN segmentation, you can control access to your network and add Quality of Service for a smooth, reliable experience. And with Sophos Central, managing your switches is easy - alongside your other Sophos security solutions.

Variety of ways to manage your Sophos switch
Managing your switches is easy with Sophos. You can manage them from Sophos Central alongside all the other solutions that you have in place, locally with the web interface or CLI (command line) and through SNMP queries if needed too!

Straightforward to set up and deploy
Simple setup and deployment is a breeze with Sophos Switches. Simply enter your serial number into central, click "register" to start the process--you'll have an up-and running switch in minutes!

Provide the connectivity that many organizations need
Sophos' Switches are the ideal solution for many organizations of all sizes, from remote and home offices to small business owners. Add our full range of products into your SD-Branch deployment with their LAN access, or take advantage even more by connecting them over a service edge connection.

One vendor for your entire network stack
Maintaining separate vendors can be difficult when it comes time for updates or new releases. This often requires coordination between multiple parties, which creates a lot more work than necessary. With their new Sophos Switches, the only vendor you require in your network stack is Sophos. With their seamless integration into your existing Sophos infrastructure, single-vendor deployment becomes a reality in many networks around the world.

One year Sophos Central support and services included:
Local Web/CLI/SNMP management
Limited lifetime warranty* replacement
Sophos Central Management
Advanced RMA support
Phone support 24x7
Firmware updates



Form Factor:

1U

Mounting:

Rackmount (ears and screws incl.)

Switching Capacity Duplex (Gbps):

176

MAC Address Table:

32K

Memory:

512 MB

Packet Buffer Memory:

2MB

VLANs:

Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs)

10/100/1000Base-T:

48

SFP+ 1G/10G:

4

Other Interfaces:

Console Port, AC Power Socket

PoE Power Budget:

410W

PoE-capable Ports:

1 to 48

Supported PoE Standard:

802.3af/802.3at

Max. PoE Devices:

26 (15.4W)/13 (30W)

Power supply:

480W

Power Supply Type:

Internal PSU

Power Supply AC Input:

100-240VAC, 50/60Hz, 7A

Power Supply Output:

12V/5A;-54V/7.8A

Power Adapter Efficiency:

100VAC / 4.823A (86.67%) 240VAC / 1.956A (91.15%)

Power consumption:

29.8W / 101.618BTU/hr (idle) 476.3W / 1624.183BTU/hr (max.)

Dimensions Width x Depth x Height:

310mm x 440mm x 44mm

Weight:

4.85 kg (unpacked) 5.94 kg (packed)

Fan:

3
