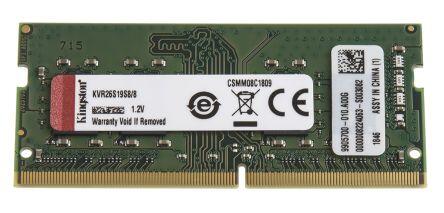

Generic KVR26S19S8/8 Kingston 8GB RAM, 2666MHz DDR4 Non-ECC CL19 SODIMM 1Rx8

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

• Power Supply: VDD = 1.2V Typical • VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
• Memory Capacity: 8GB
• Model/Series/Type: ValueRAM
• Brand: Kingston
• CAS Latency: CL19
• Chip Organization: x8
• Form Factor: DDR4
• Memory Depth: 2G
• Memory Voltage: 1.2v
• Module Type: SODIMM
• Operating Temperature: 0°C to 85°C
• Pins: 260 Pin
• Product Type/Family: DRAM
• RAM Memory Type: Non-ECC
• Rank: 1R (Single Rank)
• Speed: 2666MHz (PC4-21300)
• Weight: 9g
