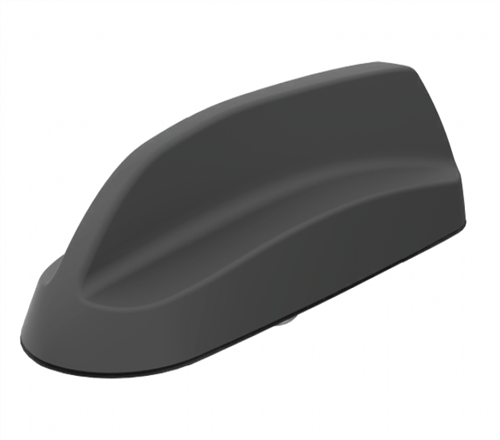

Panorama Antennas GPSD-7-27-24-58 Shark Fin Vehicle Antenna, 2 Cellular (698-2700MHz), 1 GPS, 2 WiFi

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

GPS/GNSS, MiMo 2G/3G/4G cellular & MiMo WiFi dual-band 2.4 / 4.9-6GHz in one housing

  • 2 x Wideband LTE/cellular Elements (MiMo)
  • 2 x 2.4 & 4.9-6GHz WiFi Elements (MiMo)
  • Panel Roof Mount System
  • High Performance

2 x SMA plug with 300mm cable length for cellular
2 x SMA jack with 300mm cable length for WiFi
1 x FME jack with 300mm cable length for GPS
(if your router has SMA connector for GPS, use the 'J01703A0009' FME to SMA adapter)

2G/3G/4G Frequencies : 698-960/1710-3800MHz
Global Positioning : GPS / GNSS 1562-1612
2G/3G/4G MiMo :  2x2
Max Input Power (W) : 50
Pattern   : Omni-directional

Global Positioning
Frequency Range (MHz) : 1562-1612
LNA Gain (dB) : 26

Length (mm) 172
Width (mm) 61
Height (mm) 50

Perfect for Cradlepoint models:
