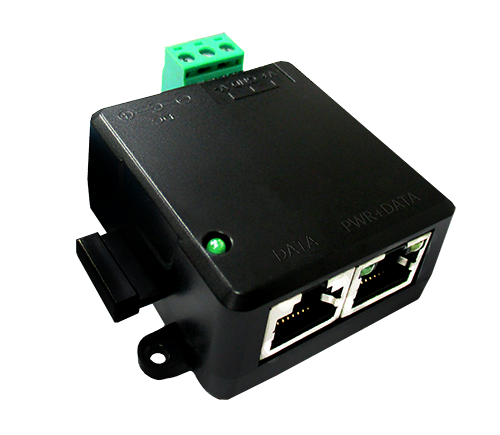

Cerio POE-G30T PoE Injector, 5Gig Ethernet, PoE+, 30W, DC and Terminal Power Input

PoE Injector, 5Gig Ethernet, PoE+, 30W, DC and Terminal Power Input

30 Watt, 1/2.5/5Gbps (multi-gigabit) PoE+ Injector with standard DC and terminal power input.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

30 Watt, 1/2.5/5Gbps (multi-gigabit) PoE+ Injector with standard DC and terminal power input.

The CERIO POE-G30T supports IEEE 802.3af/at standard specifications. It is an Active Type PoE+ network power supply. It takes DC 48-57V input voltage and supports Class 3 of 15.4 Watt PoE and Class 4 30Watt PoE+ standards, as well as supporting dual power input mode.

In addition to the standard DC transformer power supply, it also supports industrial-standard removable power supply terminal power access mode.

Resilience, flexibility and expansion capabilities. With this POE-G30T power supply, you can simultaneously transmit network data and power to PD powered network equipment through the RJ45 network cable.

  • Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T, IEEE802.3at PoE+, IEEE-802.3af PoE and other standard specifications.
  • Supports 1/2.5/5Gbps Multi Gigabit RJ45 Ethernet transmission capacity.
  • Automatically detects that the PD powered device is powered by the End-span (Type-A) or Mid-span (Type-B) power pin, and the RJ45 LED light will display to determine the power supply type.
  • Supports IEEE 802.3af/at POE standard specifications, with the attached 56V power adapter, it can support the maximum power supply of the PoE port: 30Watts (IEEE 802.3at)
  • With network PSE / POE power supply device function to provide data and power transmission at the same time, using network wiring above CAT 5, the power distance can reach 100 meters (328 feet).
  • In addition to supplying power according to the standard DC transformer, it also supports the power supply of industrial-standard removable power supply terminals. The power supply can be selected single or simultaneously. If the dual power receiving mode is adopted, it can achieve dual power mutual backup and uninterrupted power. Application (Power Failover).
  • Supports current and reverse current protection design during acute overload.
  • It supports desktop placement, wall mounting, and multiple connection combinations in series (daisy chain). Convenient for the arrangement and wiring of network cables.

The CERIO POE-G30T power supply is designed to allow your PoE wireless network devices, such as PoE wireless base stations or PoE wireless broadband routers or PoE network cameras and other PoE network devices, without the need to use traditional transformers to use their own power. It greatly simplifies the complicated wiring process and brings great convenience to the office and industrial environment. And it supports both End-span (Type-A) and Mid-span (Type-B) for power supply, regardless of whether the power pin of the powered PD device is designed to be Type-A or B can be connected. With this CERIO POE-G30T power supply, the RJ45 network cable can be used to simultaneously transmit network data and the power required by the device.

Long-distance applications

Cerio PoE power supply can provide data and power transmission at the same time, using network wiring above CAT 5, the power distance can reach 100 meters (328 feet).

Surge protection

POE-G30T supports ESD electrostatic discharge protection, on-load discharge anti-surge and equipment safety design.

Easy installation

Plug and play without any software configuration.

POE-G30T product standards and hardware specifications

Standard Specification IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5G BASE-T
IEEE802.3af Power over Ethernet (PoE)
IEEE802.3at Power over Ethernet Plus (PoE+)
Internet media 10BASE-T: UTP Cat. 3 or up
100BASE-TX: UTP Cat. 5 or up
1000BASE-T: UTP Cat. 5 or up
2.5G/5G BASE-T: UTP Cat.5e or up
Data transfer rate 10M/100M/1G/2.5G/5G (Half-duplex),
20M/200M/2G/5G/10G (Full-duplex)
PoE type Active POE (Active POE)
Information PIN  PIN 1/2, 3/6 & 4/5, 7/8
Power PIN End-span (Type-A): PIN 1/2,3/6
Mid-span (Type-B): PIN 4/5,7/8
Port number interface RJ-45 x1: data transmission
RJ-45 x1: power supply + data transmission
Power interface Output: RJ45 standard Active 802.3af/at PoE Out
dual power input: DC In and removable 2-pin terminal (for external industrial power system use)
ESD surge protection Support ESD (Electro Static Discharge)
electrostatic discharge protection and load discharge anti-surge design
Environment and characteristics
 PoE maximum support power supply wattage  30Watts
Power supply configuration  External 56V 30W power transformer
Power input voltage  48 ~ 57Volt
LED indicator number System: Power (Green) x1
PoE (RJ45): End-span (Green), Mid-span (Yellow) x2
(The PoE LED on RJ45 Jack)
Operating temperature  0° to 55° C
Storage temperature  -40° to 70° C
Operating humidity  5% to 90% non-condensing
Storage humidity  5% to 90% non-condensing
Dimensions (W x H x D)  65.8 x 64.8 x 24mm
Weight (g)  48g
Installation method  Wall-mounted, placement, cascade combination
shell material  ABS

Package Contents
POE-G30T PoE Injector x 1
30Watt power transformer  x 1
Product guarantee card  x 1
