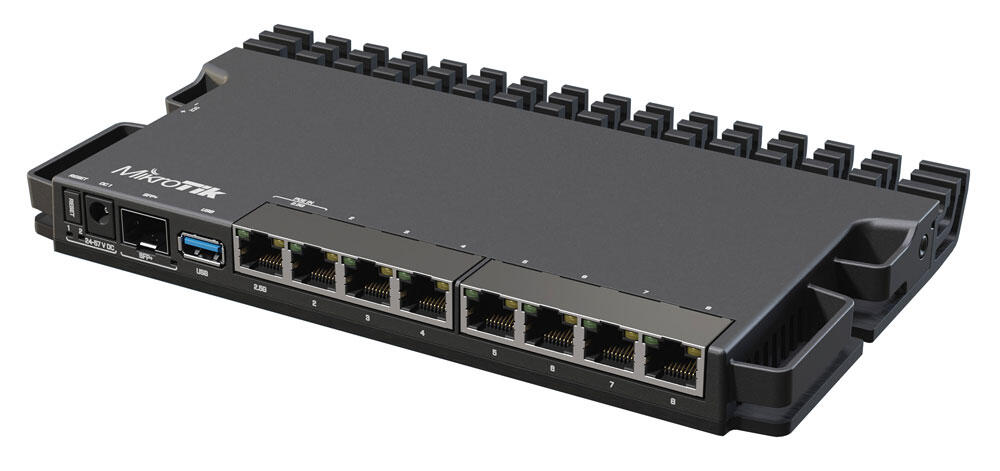

This router features nine wired ports. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage.
All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU.
Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side
Number of DC inputs 3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage 24-57 V
2-pin terminal input Voltage 24-57 V
Max power consumption 20 W
Max power consumption without attachments 14 W
FAN count 0 (Passive Cooling)
PoE in 802.3af/at
PoE in input Voltage 24-57 V
10/100/1000 Ethernet ports 7
Number of 2.5G Ethernet ports 1
SFP+ ports 1
K-55 screw kit
24V 1.5A power adapter
