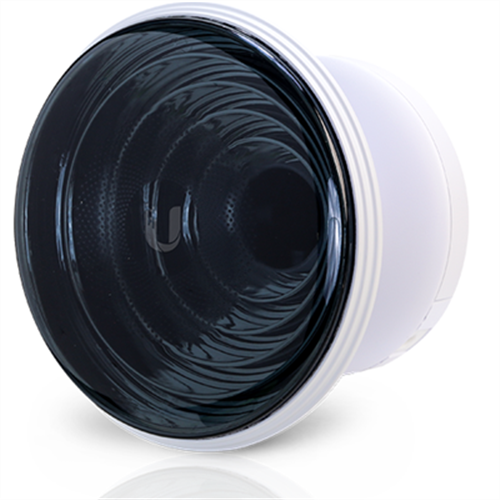

With a die-cast aluminum base and interchangeable antenna, the IsoStation brings increased performance to your network using technology that isolates beam communications between your devices. The IsoStation M5 delivers throughput speeds of up to 100+ Mbps.

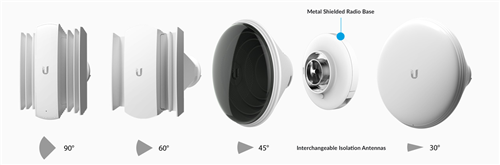

The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStationTM also gets maximum gain out of the smallest footprint.
Beam Performance Perfected
The IsoStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.
Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.
Improved Noise Immunity
IsoStationTM blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
High MAC Efficiency
High MAC efficiency provides ±80% PHY RATE throughput.
Management Wi-Fi Radio
The IsoStationTM AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Now with airOS 8
airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Output Power : 24dBm
Operating Modes : AP/Station/WDS
Frequency Range : 5150 - 5875 MHz

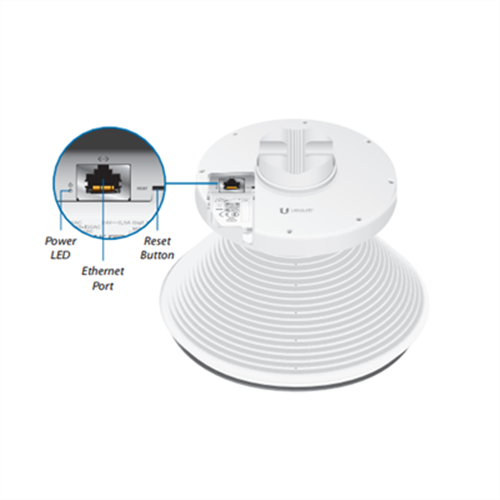

Interfaces : (1) 10/100/1000 Ethernet Port
Wireless standards : 802.11a/n
Temperature Range : -40 to 70° C
PoE In : Yes, 24V
Operating System : Ubiquiti airOS VI
Antenna gain : 14dBi
Max Power consumption : 6.5W
Number of chains : 2
Beamwidth : 45° (Default Horn)
Wind Loading : 36 N @ 200 km/h (8.09 lbf @ 125 mph)
Pole Diameter : 30-50mm
Dimensions With Horn: 174 x 174 x 150 mm, Without Horn: 131 x 131 x 65 mm
