• SFP
  • Gigabit SFP module, 1310nm Single-mode, 20KM range, LC connector

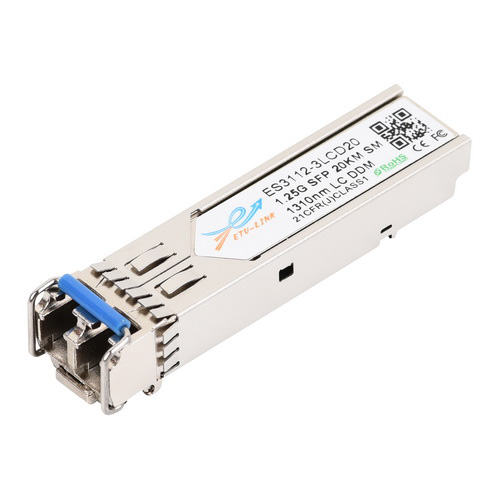

ETU-LINK ES3112-3LCD20 Gigabit SFP module, 1310nm Single-mode, 20KM range, LC connector

Gigabit SFP module, 1310nm Single-mode, 20KM range, LC connector

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

ETU-LINK’s Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).

This module can data link up to 20km on 9/125um single mode fiber.

Works with Grandstream, Sophos, Edge-Core, NETGEAR, D-Link, TP-Link, LevelOne, ZyXEL, etc.

  • Double LC type pluggable optical interface
  • 1310nm FP laser transmitter and PIN receiver
  • Up to 20km on 9/125µm SMF
  • Hot-pluggable SFP footprint
  • Low power consumption<1W typical
  • The metal shell shielding electromagnetic interference
  • RoHS compliant and lead-free
  • Single +3.3V power supply
  • Built-in PHY supporting SGMII Interface
  • 100 BASE-LX operation
  • Ambient operating temperature: 0 to +70°C

Applications
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

  • DATA RATE:1.25G
  • WAVE LENGTH:1310nm
  • DISTANCE:20KM
  • CONNECTOR:LC
  • FIBER:SM
  • DDM:YES
