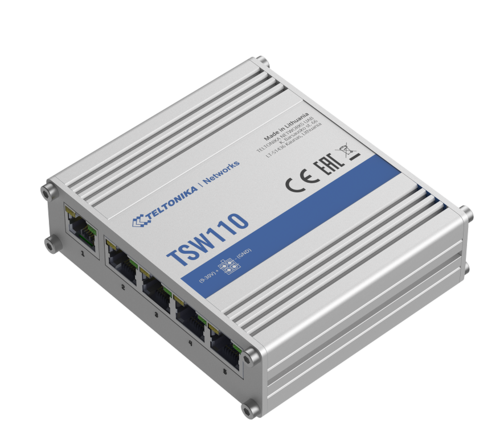

Teltonika TSW110 5-Port Gigabit Ethernet Switch, Industrial Grade

Gigabit Ethernet Unmanaged Switch

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The Teltonika TSW110 is a layer 2 unmanaged switch. It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution, offers a wide range of supported power supply voltages (9-30 V) and can be powered up through the first LAN port.

  • Plug and play
  • Rugged aluminium housing
  • DIN rail and surface mounting options
  • 1 x power, 10 x Ethernet status LEDs
  • 9-30 V wide range of supported power supply voltages
  • 5x Gigabit Ethernet with speeds up 1000 Mbps
  • The Teltonika TSW100 provides a reliable data connection to professional high bandwidth applications.

Technical Specifications

LAN: 5 x LAN port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Performance Specifications
Bandwidth (Non-blocking): 10 Gbps
Packet buffer: 128 KB
Jumbo frame support: 9216 bytes
MAC address table size: 2K entries
Connector: 4 pin industrial DC power socket
Input voltage range: 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Power consumption (idle/max): < 0.4 W/ <1.8 W

Physical Interfaces (ports, LEDs)
Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs: 1 x Power LED, 10 x LAN status LED’s
Power: 1 x 4 pin DC connector
Ground: 1 x Grounding screw

Physical Specification
Casing material: Full aluminium housing
Dimensions: (W x H x D) 100 x 30 x 85 mm
Weight: 227 g
Mounting options: DIN rail or wall mounting (additional kit needed), flat surface placement

Operating Environment
Operating temperature:  -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
