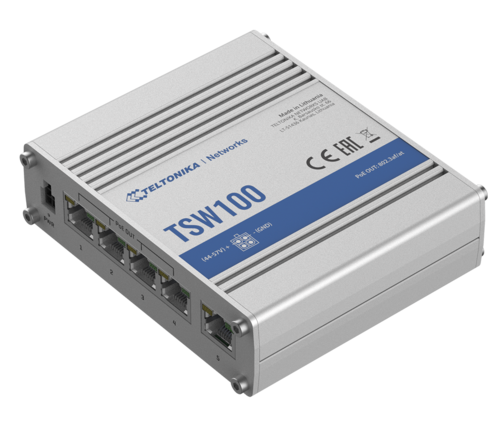

Teltonika TSW100 5-Port Industrial Gigabit Ethernet PoE Switch, 4x 802.3af/at PoE Ports

  • 5-Port Industrial Gigabit Ethernet PoE Switch
  • 4x 802.3af/at PoE Ports

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Unmanaged Desktop 5 Port Gigabit PoE+ Switch

The Teltonika TSW110 5-Port Unmanaged Desktop Gigabit PoE+ Switch delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as access points and IP cameras. It supports both PoE (802.3af) and PoE+ (802.3at) devices with a 120 Watt PoE budget. This sturdy metal switch is Plug and Play for reliable high speed PoE networking.

  • Five (5) RJ45 10/100/1000 Mbps ports.
  • Ports 1- 4 feature 802.3at output.
  • Full aluminum housing.
  • PoE Max Power per Port: 30W
  • Total PoE Power Budget: 120W
  • Mounting: DIN rail or Wall



5 x LAN port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

PoE ports

Port 1- 4
PoE standards

802.3af and 802.3at
PoE Max Power per Port (at PSE)

30 W
Total PoE Power Budget (at PSE)

120 W



4 pin industrial DC power socket
Input voltage range

7-57 VDC
Input voltage range for PoE

44-57 VDC
Power consumption (idle/max no PoE/max)

2W / 9W / 129W



5 x RJ45 ports, 10/100/1000 Mbps
Status LED’s

1 x Power LED, 10 x LAN status LED’s

1 x 4 pin DC connector

1 x Grounding screw


Casing material

Full aluminum housing
Dimensions (W x H x D)

115 x 32 x 95 mm


DIN rail or wall mounting (additional kit needed), flat surface placement


Operating temperature

-40 °C to +75 °C
Operating humidity

10 % to 90 % non condensing

Package Contents

1 x Teltonika TSW100
1 x 65W PSU
1 x QSG (Quick Start Guide)
1 x Packaging box
