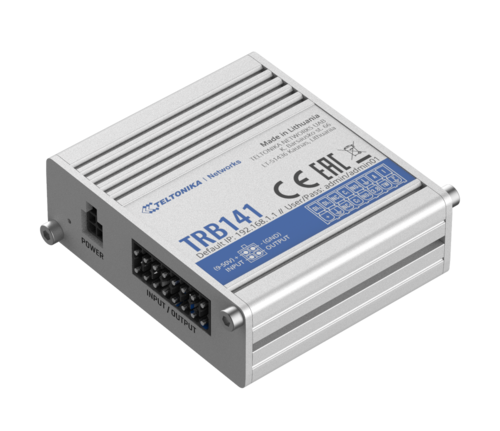

Teltonika TRB141 Industrial Cat 1 LTE to I/O Gateway

Robust industrial LTE Cat1 & IoT gateway including a robust metal housing

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The Teltonika TRB141 is a small, robust industrial LTE Cat1 & IoT gateway including a robust metal housing. The TRB141 is also available as a board without housing.

  • Multiple Inputs/Outputs for remote monitoring and control
  • LTE Cat 1 for M2M/IoT communications
  • Compact size, easy integration
  • Wide range of power supply voltages
  • Teltonika Remote Management System compatible
  • Easy to use, secure and feature rich OpenWrt based Operating System

The Teltonika TRB 141 is a small industrial LTE Cat 1 gateway and equipped with a micro USB and various Input/Output options, including Digital, Relay, Analog, and Isolated.

Paired with secure and functional RutOS, plenty of processing power, and Teltonika Networks Remote Management System (RMS), this device offers unprecedented application flexibility to manage and control equipment remotely over LTE Cat 1.

It has a wide range of software features such as SMS control, VPN, IPsec, Firewall, and FOTA support.

Perfect for application scenarios, where devices must be remotely managed using Inputs/Outputs.

- Add remote access and management with Teltonika Networks Remote Management System (RMS).

RMS is an all-in-one user-friendly IoT platform providing a smart way to stay on top of your whole connected solution completely remotely, securely, and reliably.

It is a powerful solution for remote access and management allowing users to save time and operational costs while being flexible and easy to use. With RMS you can manage compatible Teltonika Networks routers and gateways, reach remote devices, utilize the power of remote desktop access and configure secure VPN tunnels with just a few clicks.

Try it for free - https://rms.teltonika-networks.com/account/register

Specifications
Mobile: 4G/LTE (Cat 1), 3G, 2G
CPU: Qualcomm, ARM Cortex A7, 1.2 GHz
Memory: 512 MBytes Flash (70 MBytes for userspace), 128 MBytes RAM (50 MBytes for userspace)
Powering option: 4 pin power socket, 9-30 VDC
SIM: 1 x Internal SIM holder (2FF)
Antenna connectors: 1 x SMA for mobile
Intputs/Outputs:
On 4 pin socket: 2 x Digital input/Digital open collector output (configurable)
On 16 pin socket: 1 x Isolated input, 1 x Single wire input, 1 x Analog input (with 4-20mA capability)
1 x Latching relay output, 1 x Non-latching relay output, 2 x Dry/Wet input (configurable)
Other: 1 x Micro USB slave
Status LEDs: 3 x Connection type, 5 x Signal strength, 1 x Power
Operating temperature: -40° C to 75° C
Housing: Aluminium housing with DIN rail mounting option
Dimensions (W x H x D): 75 x 25 x 65 mm
Weight 136 g


What’s in the Box
TRB141
4.5 W PSU
1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
Micro-USB cable (0.8 m)
1 x hex key
I/O connector
