Teltonika RUT300 Router, 5x Ethernet Ports, I/O, Rugged Industrial Chassis

Small but powerful Ethernet router

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

. Promotional Price
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

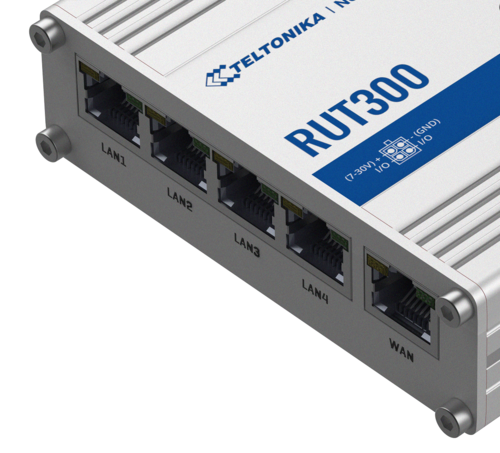

The Teltonika RUT300 is a small but powerful Ethernet router, perfect for challenging industrial networking tasks as well as general networking applications.

  • Five 10/100 Mbps Ethernet ports
  • USB 2.0 port
  • Preconfigured firewall
  • Multiple top rated VPNs
  • Passive PoE

Add remote access and management with Teltonika Networks Remote Management System (RMS).

RMS is an all-in-one user-friendly IoT platform providing a smart way to stay on top of your whole connected solution completely remotely, securely, and reliably.

It is a powerful solution for remote access and management allowing users to save time and operational costs while being flexible and easy to use. With RMS you can manage compatible Teltonika Networks routers and gateways, reach remote devices, utilize the power of remote desktop access and configure secure VPN tunnels with just a few clicks.

Try it for free -

Gigabit Ethernet
The Teltonika RUT300 features 5 Ethernet ports (10/100 Mbps). 2 x Configurable digital Inputs/Outputs and USB 2.0.

The RUT300 offeres numerous VPN services including OpenVPN, IPsec, PPTP, L2TP & DMVPN, L2TP, DMVPN, Stunnel and others.

The RUT300 is housed in alluminium to withstand harsh environments

Unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

Numerous VPN services are available with the RUT300, including OpenVPN, IPsec, PPTP, L2TP & DMVPN, L2TP, DMVPN, Stunnel and others.

The RUT300 supports up to 4096 VLAN IDs for VLAN tagging and port based VLANS.

Compatible with Teltonika Remote Management System.

Technical Specifications

WAN: 1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
LAN: 4 x LAN ports (can be configured as secondary WAN ports), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover

Routing: Static routes, Dynamic routes (planned)
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP (planned), SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP (planned), MQTT (planned), Wake on LAN (WOL) (planned)
VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall: Port forwards, traffic rules, NAT rules, custom rules
DHCP: Static and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Management (SQM) (planned): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS (planned): Supported >25 service providers, others can be configured manually
Network backup: Wired WAN options, each of which can be used as an automatic Failover
Load balancing: Balance Internet traffic over multiple WAN connections
SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW)

Authetication: Pre-shared key, digital certificates, X.509 certificates
Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN: Port and tag based VLAN separation
WEB filter (planned): Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods
IPSec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE: GRE tunnel
PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3 support (planned)
Stunnel (planned): Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN (planned_: Method of building scalable IPsec VPNs
SSTP (planned): SSTP client instance support
ZeroTier (optional): ZeroTier VPN client support (not available in standard FW)
WireGuard (optional): WireGuard VPN client and server support (not available in standard FW)

WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA: Firmware update from server, automatic notification
SSH: SSH (v1, v2)
TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT (planned): MQTT Broker, MQTT publisher
SNMP (planned): SNMP (v1, v2, v3), SNMP trap
JSON-RPC: Management API over HTTP/HTTPS
Modbus (planned): Modbus TCP status/control
RMS: Teltonika Remote Management System (RMS)
WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA: Update FW/configuration from server
RMS: Update FW/configuration for multiple devices at once
Keep settings: Update FW without losing current configuration

Input: 1 x Digital Input (Non-isolated, Logic low 0...+5V, Logic high +8...+40V)
Output: 1 x Digital Output (open collector type, 30V@0.3A)
Data rate: USB 2.0
Applications: Samba share, custom scripts
External devices: Possibility to connect external HDD, flash drive, printer (planned)
Storage formats: FAT, FAT32, NTFS

Connector: 4 pin industrial DC power socket
Input voltage range: 7 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive): Passive PoE. Possibility to power up through LAN port. (not compatible with IEEE802.3af, 802.3at and 802.3bt standards)
Power consumption: Idle: 1.3 W, Max: 3 W

Ethernet: 5 x RJ45 ports, 10/100 Mbps
I/Os: 2 x Configurable digital Inputs/Outputs on 4 pin power connector
Status LEDs: 5 x ETH status, 1 x Power
Power: 1 x 4 pin DC connector
USB: 1 x USB A port for external devices
Reset: Reboot/User default reset/Factory reset button

Casing material: Aluminium housing with DIN rail mounting option
Dimensions (W x H x D): 100 x 30 x 85 mm
Weight: 229 g
Mounting options: DIN rail, flat surface placement

Operating temperature: -40 C to 75 C
Operating humidity: 10 % to 90 % non-condensing
