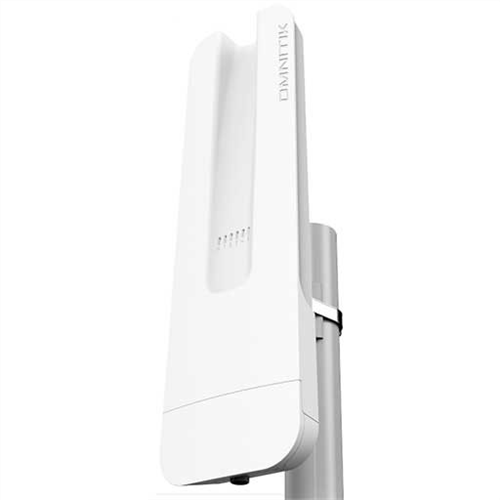

MikroTik RBOMNITIKPG-5HACD Outdoor 802.11ac WiFi Router, 5GigE, 802.3at/af PoE input/output

AKA OmniTIK5POEac

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The OmniTik 5 ac features five Gigabit Ethernet ports and 802.11ac WiFi.

It is equipped with a powerful 720MHz CPU, 128MB RAM, high power 1,300mW 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with 802.11a/n devices).

It also comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector, and a mounting kit.

The OmniTik 5 PoE ac supports passive or standard 802.3at/af PoE input/output (12v-57v). Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about!

It can power 48V devices (like IP cameras), if 48V input is used.


Powering Details
Max Power consumption : 18W
PoE in : Passive PoE
PoE out : 802.3af/at
PoE in input Voltage : 12-57 V
Number of DC inputs : 1 (PoE-IN)

Wireless Details
Wireless 5 GHz number of chains : 2
Wireless 5 GHz standards : 802.11a/n/ac
Antenna gain dBi for 5 GHz : 7.5
Wireless 5 GHz chip model : QCA9892

Ethernet Details

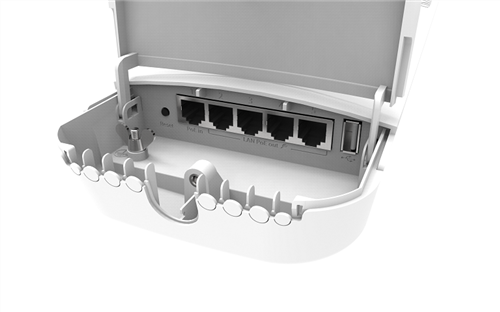

10/100/1000 Ethernet ports : 5

Peripherals
Number of USB ports : 1
USB Power Reset : Yes
USB slot type : USB type A
Max USB current : 1A

Other Details
PCB temperature monitor : Yes
Voltage Monitor : Yes

Included parts
 Pole mounting bracket
Metal ring (one)
Gigabit PoE injector
IEC cord
28V 2.57A power adapter



AKA OmniTIK5POEac
